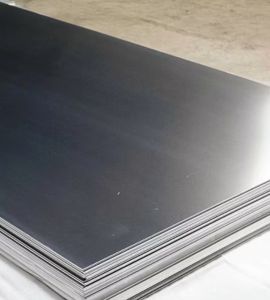

For businesses and fabricators in Manila and across the Philippines seeking unparalleled strength and durability, Diaz Sheetsandplates stands as your trusted local partner. We specialize in supplying high-quality Stainless Steel 422 sheets and plates, delivering materials engineered for the most demanding environments. Our commitment is to provide not just a product, but a reliable solution that empowers your most ambitious projects with confidence and longevity, backed by our expert service and deep understanding of the local market’s needs.
Stainless Steel 422 is a martensitic grade known for its impressive combination of a hardenable structure and good corrosion resistance. Its composition includes chromium, molybdenum, and nickel, which grant it superior strength and toughness compared to many other stainless grades. This alloy can be heat-treated to achieve high tensile and yield strength, making it exceptionally resistant to wear and fatigue. It maintains these robust mechanical properties even under elevated temperatures, ensuring reliable performance when the pressure is on.
| Specifications : | ASTM A240 / ASME SA 240 |
| Dimensions : | AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, IS & Custom Chemistry |
| Production Route : | Hot Rolled, Cold Rolled |
| Size : | Width from 100mm to 3000mm ; Length from 500mm to 12000mm |
| Thickness : | 0.1mm to 400mm |
| Delivery Condition : | As Rolled, Annealed, Quenched and Tempered, Normalized |

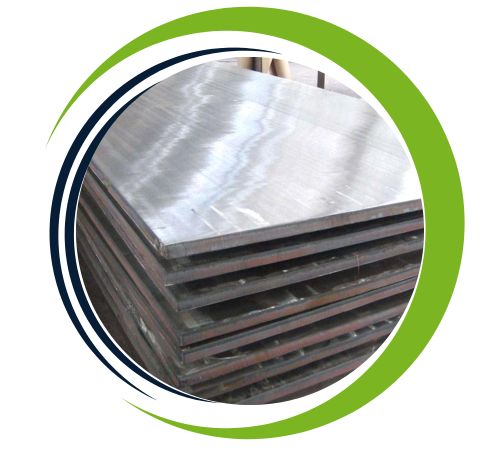

| Surface Finish : | Plain, Brushed, Cladded |
| Grade | C | P | Si | Ni | V | Fe | Mn | S | Cr | Mo | W | Cu |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SS 422 | 0.20-0.25 | 0.040 max | 0.20-0.60 | 0.50-1.0 | 0.17-0.30 | Bal | 1.0 | 0.030 max | 11.0-13.5 | 0.75-1.25 | 0.75-1.25 | 0.50 |
| Material | Condition | 0.2 % Yield Strength (ksi) | Ultimate Tensile Strength (ksi) | % Elongation in 2″ | % Reduction of Area | Hardness HB |
|---|---|---|---|---|---|---|
| SS 422 | Hardened & Tempered (AMS 5655) | 140 | 115 | 13 | 25 | 293-341 |
| STANDARD | WERKSTOFF NR. | UNS |
|---|---|---|
| SS 422 | 1.4935 | S42200 |
| Density (lb / cu. in.) | 0.287 |
| Specific Gravity | 7.94 |
| Specific Heat (Btu/lb/Deg F – [32-212 Deg F]) | 0.12 |
| Electrical Resistivity (microhm-cm (at 68 Deg F)) | 432 |
| Melting Point (Deg F) | 2590 |
| Modulus of Elasticity Tension | 28 |
| METAL GAUGE | (APPROXIMATE INCHES) | NOMINAL DECIMAL (+/- INCHES) |
|---|---|---|
| 7 | 0.1793 | 0.0080 |
| 8 | 0.1644 | 0.0080 |
| 9 | 0.1495 | 0.0080 |
| 10 | 0.1345 | 0.0070 |
| 11 | 0.1196 | 0.0050 |
| 12 | 0.1046 | 0.0050 |
| 13 | 0.0897 | 0.0050 |
| 14 | 0.0747 | 0.0040 |
| 15 | 0.0673 | 0.0040 |
| 16 | 0.0598 | 0.0030 |
| 17 | 0.0538 | 0.0030 |
| 18 | 0.0478 | 0.0030 |
| 19 | 0.0418 | 0.0030 |
| 20 | 0.0359 | 0.0030 |
| 21 | 0.0329 | 0.0025 |
| 22 | 0.0299 | 0.0020 |
| 23 | 0.0269 | 0.0020 |
| 24 | 0.0239 | 0.0020 |
| 25 | 0.0209 | 0.0015 |
| 26 | 0.0179 | 0.0015 |
| 28 | 0.0149 | 0.0010 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless steel 422 sheets and plates offer many advantages, including excellent increased strength and oxidation resistance, making them ideal for applications in harsh environments such as turbine heat exchangers They provide excellent corrosion resistance , ensure durability under extreme conditions Their high tensile strength and strength enhance the reliability of the structures, while mechanical practicality and ease of manufacture. These sheets and plates remain stable and durable under stress, providing longevity. In addition, the cost-effectiveness and compatibility of heat treatments provides assets tailored to specific industrial applications, resulting in versatile and reliable products.
The exceptional strength and heat resistance of Stainless Steel 422 make it ideal for heavy-duty applications. You’ll often find it in critical components like turbine blades, fasteners, and high-temperature valves within the power generation industry. It’s also perfectly suited for demanding roles in aerospace engineering, chemical processing equipment, and high-performance pump shafts. Fabricators choose this material for projects where failure is not an option, relying on its ability to withstand intense stress, abrasion, and elevated temperatures over the long term.
