In the heart of Manila’s industrial landscape, Diaz Sheetsandplates stands as your trusted partner for high-performance nickel alloys. We specialize in providing top-quality Hastelloy X sheet and plates, materials engineered to withstand the most demanding environments. Our commitment is to deliver not just a product, but a reliable solution backed by local expertise and a dedication to supporting the growth of various industries right here in the Philippines and beyond.
Hastelloy X is renowned for its exceptional strength at high temperatures, thanks to a sophisticated composition primarily of nickel, chromium, and molybdenum. This blend gives the sheets and plates outstanding oxidation resistance, allowing them to perform reliably in temperatures up to 2200°F. They also maintain good fabricability, meaning they can be formed and welded with relative ease, making them a practical choice for complex engineering projects.
Specifications :ASTM B435 / ASME SB435
Width : 1000mm / 1219mm /1250mm / 1500mm / 2000mm
Length : 2000 mm / 2440 mm / 2500 mm / 3000 mm / 6000 mm.
Thickness : Ranging from 0.3mm to 20mm
Hardness : As per ASME A & NACE MR 175

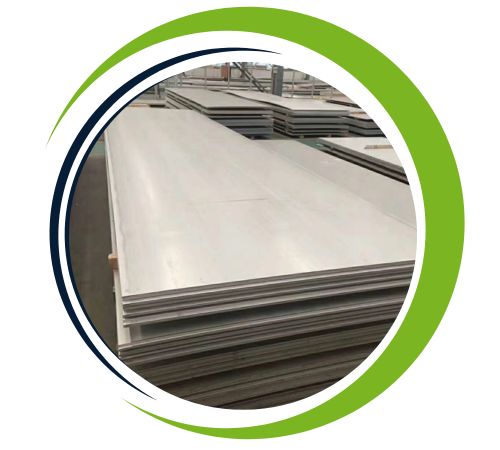

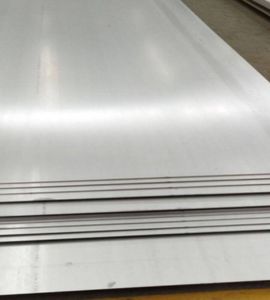

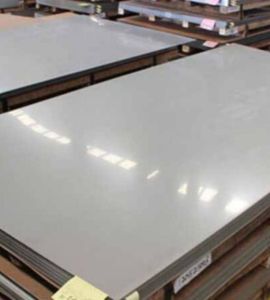

Finish : Hot rolled plate (HR), Cold rolled sheet (CR)
Form : Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange)
| Grade | C | Mn | Si | Al | Co | Ni | Cr | Fe | Mo | Ti |
| Hastelloy X | 0.05-0.15 | 1.0 max | 1.0 max | 0.50 max | 0.5-2.5 | Remainder | 20.5 – 23 | 17 – 20 | 8 – 10 | 0.15 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.22 g/cm3 | 1355°C (2470°F) | 95 KSI min (655 MPa min) | 35 KSI min (240 MPa min) | 35 % |
| STANDARD | WERKSTOFF NR. | UNS |
| Hastelloy X | 2.4665 | N06002 |
| Dimension (mm) | KG P/M2 |
| 0.5 X 1000 X 2000 | 4.5 |
| 0.7 X 1219 X 3048 | 6.3 |
| 0.9 X 1219 X 3048 | 8.1 |
| 1.2 X 1219 X 3048 | 10.8 |
| 1.6 X 1200 X 3048 | 14.4 |
| 2.0 X 1219 X 3048 | 18.0 |
| 3 X 1200 X 3000 | 27.0 |
| 3.18 X VARIOUS ANN | 28.6 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Hastelloy X sheets and plates offer significant advantages, particularly in high-temperature applications. Known for their excellent resistance to oxidation and corrosion, they perform exceptionally well in extreme environments, such as gas turbines, aerospace components, and high-temperature chemical processing. With outstanding strength and thermal-fatigue resistance they maintain their structural integrity under fluctuating temperatures. Additionally, Hastelloy X provides superior weldability and formability, making it easy to fabricate into complex shapes. Its durability and long service life in harsh conditions reduce maintenance costs making it a preferred material for critical industrial applications that demand reliability and performance.
| Thickness | Alloy | Plate Weight per Unit Area | Density |
| 3/16 inches | Hastelloy X | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | Hastelloy X | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | Hastelloy X | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | Hastelloy X | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | Hastelloy X | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | Hastelloy X | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | Hastelloy X | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 inches | Hastelloy X | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | Hastelloy X | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | Hastelloy X | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | Hastelloy X | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | Hastelloy X | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | Hastelloy X | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | Hastelloy X | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | Hastelloy X | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | Hastelloy X | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
You’ll find our Hastelloy X sheets and plates at the core of critical applications where heat and corrosion are major challenges. They are essential in constructing gas turbine engine components, combustion cans, and afterburner parts in the aerospace sector. Beyond flight, this material is vital in industrial furnace equipment, heat-treating fixtures, and chemical processing systems, proving its worth wherever extreme conditions demand unwavering material integrity and long-lasting performance.
