Browse Our Collection
Get instant quotes that fit your budget perfectly.
Nestled in the industrial landscape of Manila, Philippines, Diaz Sheetsandplates stands as your trusted partner for high-performance metal solutions. We take pride in supplying top-tier Stainless Steel 347 Sheets and Plates, carefully sourced to meet the rigorous demands of modern industry. Our commitment is to provide not just a product, but a reliable foundation for your most challenging projects, backed by a deep understanding of local needs and a dedication to customer satisfaction that sets us apart.
Stainless Steel 347 is an austenitic alloy stabilized with niobium, which provides exceptional resistance to intergranular corrosion following exposure to temperatures in the carbide precipitation range. This composition gives the material excellent strength and toughness, maintaining its integrity across a wide range of temperatures, from high-heat applications down to cryogenic levels. It retains the good mechanical properties and corrosion resistance typical of the 300 series, making it incredibly durable and long-lasting.
| Specifications | : | ASTM A240 / ASME SA240 |
| Thickness | : | 4mm-100mm |
| Width | : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Surface | : | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |
| Finish | : | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |

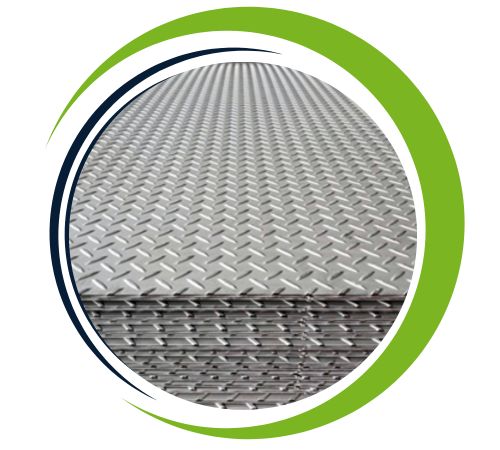

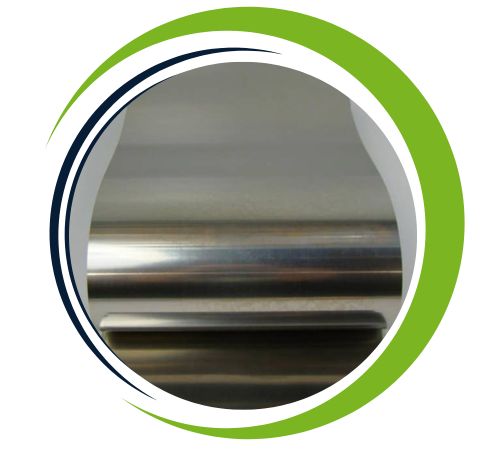

| Form | : | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Grade | C | Mn | Si | P | S | Cr | Cb | Ni | Fe |
| SS 347 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 20.00 | 10xC – 1.10 | 9.00 – 13.00 | 62.74 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1454 °C (2650 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 347 | 1.4550 | S34700 | SUS 347 | – | 08Ch18N12B | – | X6CrNiNb18-10 |
| Material | Size | Thickness |
| PLATES & SHEETS | 1000 mm x 2000 mm | 0.1mm To 100 mm Thickness |
| 1220 mm x 2440 mm (4′ x 8′) | ||
| 1250 mm x 2500 mm | ||
| 1500 mm x 3000 mm | ||
| 2000 mm x 4000 mm | ||
| 2000 mm x 2000 mm |
| Surface Finish | Definition | Application |
|---|---|---|

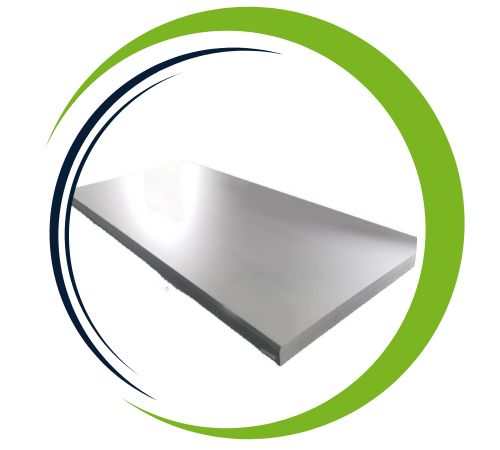

| 2B | Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster. | Medical equipment, Food industry, Construction material, Kitchen utensils. |
| BA | Those processed with bright heat treatment after cold rolling. | Kitchen utensils, Electric equipment, Building construction. |
| NO.3 | Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001. | Kitchen utensils, Building construction. |
| NO.4 | Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. | Kitchen utensils, Building construction, Medical equipment. |
| HL | Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. | Building Construction. |
| NO.1 | The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling. | Chemical tank, pipe |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless steel 347 sheets and plates offer several advantages, including excellent resistance to intergranular corrosion, making them ideal for high-temperature applications The addition of niobium stabilizes the material and provides carbide precipitation a resistance is high, especially in the welded state. It provides excellent oxidation and scaling resistance at high temperatures, making it suitable for environmental applications such as chemical processing, power generation, aerospace industries etc. Stainless steel 347 with strength a outstanding, durable and corrosion resistance ensure long-term performance in extreme conditions, reduce maintenance costs and extend component life.
This versatile material is the go-to choice for a wide array of demanding environments. You will often find it in aircraft engine parts, industrial machinery, and structural components for chemical plants, particularly where high heat is a constant factor. It’s also perfectly suited for equipment used in the food processing, pharmaceutical, and petroleum refining industries, effectively resisting corrosion from acids and other harsh chemicals. Essentially, wherever strength and resistance are non-negotiable, Stainless Steel 347 provides a dependable solution.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
