From the heart of Manila’s industrial landscape, Diaz Sheetsandplates stands as a trusted partner for high-performance materials. We specialize in providing top-tier Stainless Steel 13-8 PH sheets and plates, catering to the precise needs of various demanding sectors. Our commitment lies in delivering not just a product, but a reliable solution built on quality, consistency, and deep technical understanding, ensuring your projects are supported by the very best materials available locally.
This particular grade is a martensitic precipitation-hardening stainless steel known for an excellent balance of high strength and good corrosion resistance. Its key composition includes approximately 13% chromium and 8% nickel. Through a specialized heat treatment process, it achieves remarkable mechanical properties, offering exceptional toughness and impressive fatigue strength. This makes it significantly more robust than many standard stainless steels, capable of performing reliably under substantial stress.
| Specifications | 1.4534.9 | UNS S13800 | AMS 5629 |
| Item: | Stainless Steel Plates (Hot rolled, cold rolled) |
| Standard: | JIS, AISI, ASTM, GB, DIN, EN, etc |
| Surface: | The surface and finish of Stainless-Steel Plates: 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |
| Width: | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length: | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Thickness: | 0.3~10.0mm |

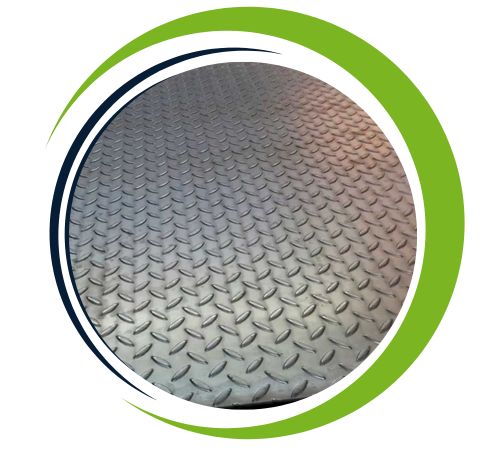

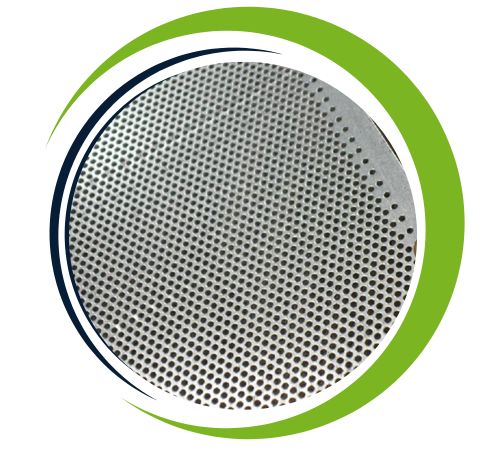

| Form: | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) |
| End: | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Cr 12.25 – 13.23% | Ni 7.50 – 8.50% | Mo 2.00 – 2.50% | Al 0.90 – 1.35% | N 0.010% | |||||
| Mn 0.10% | Si 0.10% | C 0.05% | P 0.010% | S 0.008% |
| Tensile (UTS)N/mm² | 0.2% YieldN/mm² | Elongation(50.8mm) %) | HardnessHRc | Reductionof Area |
| 1965 | 1896 | 2 | 57 | 10 |
| Alloy | UNS Number | WERKSTOFF NR. |
| 13-8 PH | UNS S13800 | 1.4534 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless steel 13-8 PH sheets and plates offer many benefits, including high strength, good corrosion resistance and outstanding hardness. Their ability to resist stress corrosion cracking makes them ideal for complex applications in the aerospace, marine, and nuclear industries. These sheets and plates are very durable, perform well in high-pressure and extreme-temperature environments, and maintain consistent mechanical properties They can be easily welded and machined, providing a variety of options a they are used for many purposes. By serving long life and reliability they are a cost-effective solution for critical applications that require precision and durability.
| Surface finish | Thickness (mm) | Width (mm) |
|---|---|---|

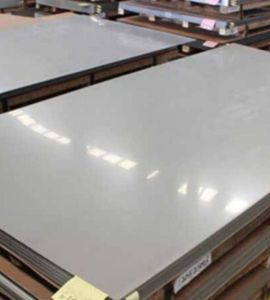

| Stainless Steel 13-8 PH PH 1D – Hot rolled, heat treated, pickled Plate & Sheet | 2.4–12.7 | max. 2032 |

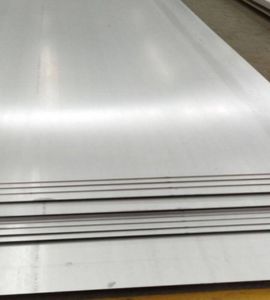

| 2R – Stainless Steel 13-8 PH Cold-rolled, bright-annealed Sheet & Plate | 0.05–1.50 | 3–649 |
| 2H – Stainless Steel 13-8 PH Work hardened Plate & Sheet | 0.05–1.50 | 3–630 |
| 2B – Stainless Steel 13-8 PH Cold rolled, heat treated, pickled, skin passed Sheet & Plate | 0.25–8.0 | max. 2032 |
| 2D – Stainless Steel 13-8 PH Cold rolled, heat treated, pickled Plate & Sheet | 0.4–6.35 | max. 1524 |
| 2E – Stainless Steel 13-8 PH Cold rolled, heat treated, mechanically descaled Sheet & Plate | 0.4–8.0 | max. 2032 |
| 2R – Stainless Steel 13-8 PH Cold rolled, bright annealed Plate & Sheet | 0.25–3.5 | max. 1524 |
| 2H – Stainless Steel 13-8 PH Work hardened Sheet & Plate | 0.4–6.35 | max. 1524 |

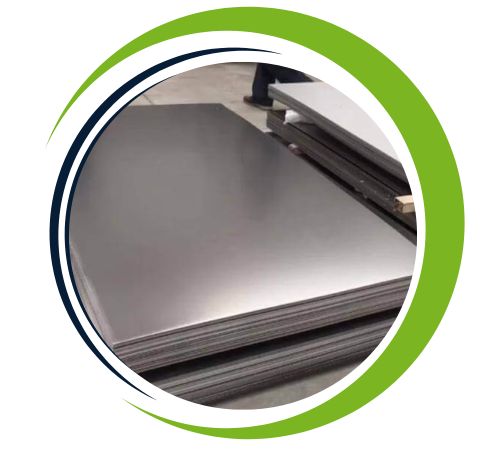

| Stainless Steel 13-8 PH Polished, brushed Plate & Sheet | 0.5–4.0 | max. 1524 |
Yes, we offer custom sizes for Stainless Steel 13-8 PH Sheet and Plates to meet specific project needs. Our team at Diaz Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
| Density | Electrical conductivity (% IACS) | Thermal conductivity (BTU-in/hr-ft²-°F) | Specific heat capacity | Thermal expansion (1/°F) | Melting Point (°F) |
| 0.282 | 1.72 | 97 | 0.11 | 0.00000589 | 2560 |
| Material | Size | Thickness |
|---|---|---|
| PLATES / SHEETS | 1000 mm x 2000 mm | 0.1mm To 100 mm Thickness |
| 1220 mm x 2440 mm (4′ x 8′) | ||
| 1250 mm x 2500 mm | ||
| 1500 mm x 3000 mm | ||
| 2000 mm x 4000 mm | ||
| 2000 mm x 2000 mm |
You’ll commonly find 13-8 PH sheets and plates hard at work in critical applications where failure is not an option. It’s a favorite in the aerospace industry for components like landing gear parts, and in oil and gas for wellhead equipment. The nuclear industry also relies on its integrity for specific parts. Furthermore, its combination of strength and corrosion resistance makes it ideal for high-stress marine components and specialized tooling, proving indispensable for engineers who need a material that can truly handle the pressure.
