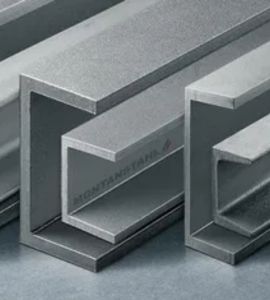

From Manila’s industrial heart, Diaz Sheetsandplates stands as your trusted partner for premium steel solutions. We take pride in supplying the robust Stainless Steel 316Ti Channel, a product engineered for environments where ordinary steel simply won’t suffice. This isn’t just another piece of metal; it’s a carefully crafted component designed to deliver unmatched performance and longevity in the most demanding situations, right here in the Philippines and beyond.
What truly sets the 316Ti alloy apart is its thoughtful composition. It builds upon the excellent corrosion resistance of standard 316 stainless steel by adding titanium. This key addition stabilizes the material against sensitization, which can lead to weakening, especially after welding. The result is a channel that maintains superior tensile strength and excellent creep resistance, even when subjected to high temperatures, ensuring structural integrity over the long term.
| Standard | ASTM A276, ASTM A479 / ASME SA276, ASME SA479 |
| Condition | HRAP |
| Size Range | Base: 80 to 150 mm Side: 40 to 75 mm |
| Thickness | 5 to 6 mm (depending on size) |
| Grades | 304, 316 |
| Processing | Bar cutting |
| ELEMENT | 316 | 316L | 316TI |
|---|---|---|---|
| NI | 11.0 – 14.0 | 10.0 – 14.0 | 10.0 – 14.0 |
| C | 0.08 max | 0.035 max | 0.08 max |
| MN | 2.0 max | 2.0 max | 2.0 max |
| P | 0.045 max | 0.045 max | 0.045 max |
| S | 0.30 max | 0.30 max | 0.30 max |
| SI | 1.0 max | 1.0 max | 0.75 max |
| CR | 16.0 – 18.0 | 16.0 – 18.0 | 16.0 – 18.0 |
| MO | 2.0 – 3.0 | 2.0 – 3.0 | 2.0 – 3.0 |
| TI | 5x(C+N) – 0.70 | ||
| N | 0.10 max |
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 316 | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| SS 316Ti | 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Diaz Sheets and Plates based in Manila, Philippines, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Stainless Steel 316Ti channels offer several key advantages, particularly in high-temperature and corrosive environments. The addition of titanium enhances the material’s resistance to carbide precipitation, improving its weldability and stability at elevated temperatures. With excellent resistance to oxidation, pitting, and stress corrosion, these channels are ideal for use in harsh industrial environments, including chemical processing, marine, and food industries. They provide exceptional strength and durability, even in aggressive conditions. Stainless Steel 316Ti channels are highly versatile, offering long-lasting, reliable performance with minimal maintenance, making them a cost-effective choice for demanding applications.
Yes, we offer custom sizes for Stainless Steel 316Ti Channel to meet specific project needs. Our team at Diaz Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | – | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| SS 316Ti | 1.4571 | S31635 | SUS 316Ti | 320S31 | 08Ch17N13M2T | Z6CNDT17‐123 | X6CrNiMoTi17-12-2 |
| Description | Process | G kg/m | h mm | b mm | tw mm | tf mm | r1 mm | r2 mm |
|---|---|---|---|---|---|---|---|---|
| C 50X25X5X6 | Hot Rolled | 3.95 | 50 | 25 | 5 | 6 | 6 | 3 |
| C 75X40X5X7 | Hot Rolled/Laser | 6.95 | 75 | 40 | 5 | 7 | 8 | 4 |
| C 100X50X5X7.5 | Hot Rolled/Laser | 9.37 | 100 | 50 | 5 | 7.5 | 8 | 4 |
| C 125X65X6X8 | Hot Rolled/Laser | 13.4 | 125 | 65 | 6 | 8 | 8 | 4 |
| C 150X75X6.5X10 | Hot Rolled/Laser | 18.62 | 150 | 75 | 6.5 | 10 | 10 | 5 |
| C 150X75X9X12.5 | Hot Rolled/Laser | 24.01 | 150 | 75 | 9 | 12.5 | 5 | 1 |
| C 180X75X7X10.5 | Hot Rolled/Laser | 21.52 | 180 | 75 | 7 | 10 | 2 | 1 |
| C 200X80X7.5X11 | Hot Rolled/Laser | 24.77 | 200 | 80 | 7.5 | 11 | 2 | 1 |
| C 200X90X8X13.5 | Hot Rolled/Laser | 30.53 | 200 | 90 | 8 | 13.5 | 2 | 1 |
| C 230X80X8X12 | Hot Rolled/Laser | 28.56 | 230 | 80 | 8 | 12 | 2 | 1 |
| C 250X90X9X13 | Hot Rolled/Laser | 34.86 | 250 | 90 | 9 | 13 | 2 | 1 |
| C 250X90X11X14.5 | Hot Rolled/Laser | 40.34 | 250 | 90 | 11 | 14.5 | 2 | 1 |
| C 300X90X9X12 | Hot Rolled/Laser | 37.17 | 300 | 90 | 9 | 12 | 2 | 1 |
| C 300X90X10X15.5 | Hot Rolled/Laser | 43.85 | 300 | 90 | 10 | 15.5 | 2 | 1 |
| C 300X90X12X16 | Hot Rolled/Laser | 48.78 | 300 | 90 | 12 | 16 | 2 | 1 |
| C 380X100X10.5X16 | Hot Rolled/Laser | 54.85 | 380 | 100 | 10.5 | 16 | 2 | 1 |
| C 380X100X13X16.5 | Hot Rolled/Laser | 62.5 | 380 | 100 | 13 | 16.5 | 2 | 1 |
| C 380X100X13X20 | Hot Rolled/Laser | 67.37 | 380 | 100 | 13 | 20 | 2 | 1 |
You’ll find the Stainless Steel 316Ti Channel hard at work in some of the toughest industrial settings. It’s the backbone for structural frameworks in chemical processing plants, pharmaceutical manufacturing, and coastal architecture where salt air is a constant challenge. Its ability to withstand extreme heat also makes it ideal for high-temperature furnace parts and exhaust systems, providing a reliable solution where failure is not an option. This is the channel you choose when you need confidence built into your project’s very structure.
