Nestled in the industrial heart of Manila, Diaz Sheetsandplates stands as a dedicated source for high-quality titanium, specifically our reliable Grade 2 sheets and plates. We understand that your projects demand materials you can count on, which is why we focus on providing this exceptionally versatile grade with a commitment to consistency and service. Whether you’re a local fabricator or an international partner, we aim to be your trusted supplier, ensuring you receive the material you need, when you need it, to bring your most ambitious designs to life.
The strength of Titanium Grade 2 lies in its balanced composition, being a commercially pure titanium that offers an excellent combination of properties. It is renowned for its outstanding corrosion resistance, particularly against salt water and chlorides, while also providing good weldability and formability. This grade possesses high ductility and a moderate strength-to-weight ratio, making it easier to fabricate than many alloyed metals. This blend of durability and workability is what makes it a go-to choice for a wide array of demanding applications across different sectors.
| Specifications | ASTM B265/ ASME SB265 |
|---|---|
| Size | 1000 x 2000 milimeter, 1220 x 2440 milimeter, 1500 x 3000 milimeter, 2000 x 2000 milimeter, 2000 x 4000 milimeter |
| Thickness | 0.1 to 12 milimeter |

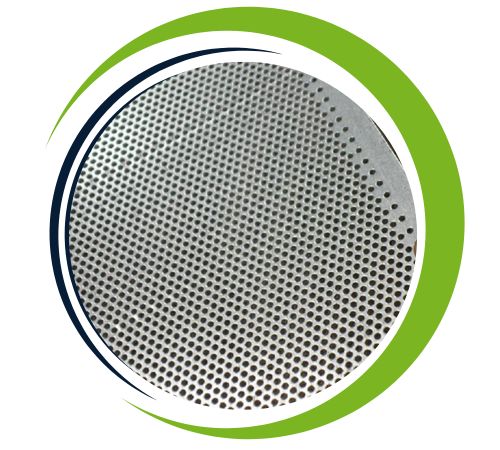

| Form | Plates, Sheet, Slatting Coils, Coils, Foils, Plain Sheet, Shim Sheet, Strip, Rolls, Perforated Coils, Flats, Blank , Ring |

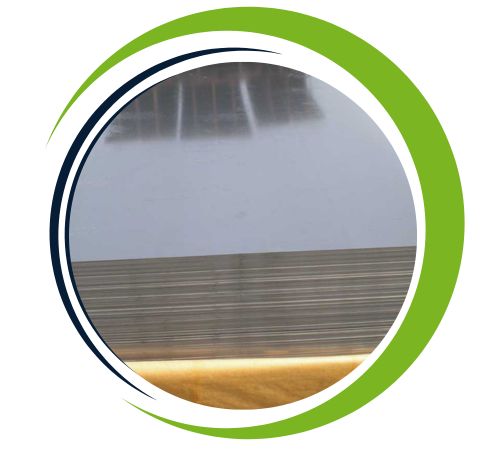

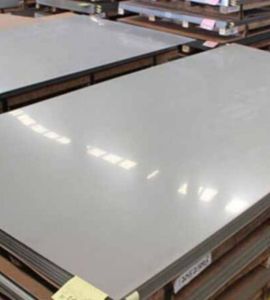

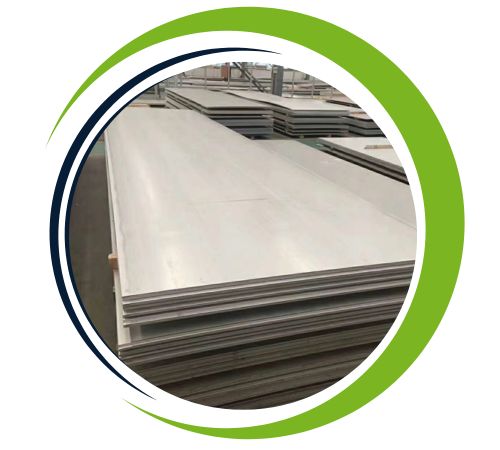

| Finish | Cold rolled sheet (CR), 2D, Hot rolled plate (HR), 2B, BA NO(8), SATIN (Met with Plastic Coated) |
| Hardness | Quarter Hard, Soft, Hard, Half Hard, Spring Hard etc. |
| Grade | Ti | C | Fe | H | N | O | Al | V |
|---|---|---|---|---|---|---|---|---|
| Ti Grade 2 Sheet & Plate | 99.2 min | 0.1 max | 0.3 max | 0.015 max | 0.03 max | 0.25 max | – | – |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|---|
| Titanium Gr. 2 Sheet & Plate | 4.5 g/cm3 | 1665 °C (3030 °F) | Psi – 49900 , MPa – 344 | Psi – 39900 , MPa – 275 | 20 % |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 2 | 3.7035 | R50400 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Titanium Grade 2 sheets and plates offer excellent corrosion resistance, particularly in marine and chemical environments, making them ideal for aerospace, chemical processing, and marine industries. They are lightweight yet exceptionally strong, providing a high strength-to-weight ratio. Known for their biocompatibility, they are widely used in medical applications. Titanium Grade 2 also has good weldability, formability, and resistance to high temperatures, making it versatile for various applications. Additionally, it exhibits low thermal expansion, enhancing stability in challenging environments.
| Stocked Sizes | |
|---|---|
| Size (in inches) | Size (in ) |
| .125 | 3.18 |
| .134 | 3.40 |
| .156 | 3.96 |
| .187 | 4.75 |
| .250 | 6.35 |
| .312 | 7.92 |
| .375 | 9.53 |
| .500 | 12.7 |
| .600 | 15.9 |
| .750 | 19.1 |
| .875 | 22.2 |
| 1 | 25.4 |
| 1.125 | 28.6 |
| 1.250 | 31.8 |
| 1.500 | 38.1 |
| 1.750 | 44.5 |
| 2 | 50.8 |
| 2.500 | 63.5 |
| 3 | 76.2 |
Because of its unique properties, Titanium Grade 2 finds itself at home in some of the most challenging environments. It’s indispensable in marine and aerospace components, chemical processing equipment, and medical implants where the body’s acceptance is critical. You’ll also find it in architectural cladding for iconic buildings, heat exchangers in desalination plants, and even in consumer goods like high-performance sporting equipment. Its reliability in resisting corrosion while remaining relatively lightweight makes it an invaluable material for engineers and designers pushing the boundaries of innovation and longevity.
