Nestled in the industrial heart of Manila, Philippines, Diaz Sheetsandplates has built a solid reputation as a trusted partner for industry. We specialize in providing high-quality Monel sheets and plates, catering to the demanding needs of various sectors. Our commitment lies in delivering reliable materials that meet rigorous standards, ensuring your projects are built on a foundation of durability and performance. When you think of robust nickel-copper alloys in the region, think of Diaz Sheetsandplates as your dependable source.
Monel is primarily composed of about 67% nickel and 23% copper, which gives it a unique set of advantages. This nickel-copper alloy is renowned for its excellent corrosion resistance, especially in salt water and various chemical environments. It maintains good mechanical strength over a wide temperature range and offers impressive resistance to both alkaline and acidic substances. Essentially, it’s a material built to last where others might fail, offering a superb balance of strength and longevity.
Specifications :ASTM B127, ASME SB127, AMS 4544, QQ-N-281, DIN 17750, BS 3072NA1, BS 3076NA13
Standards : ASTM, ASME and API
Size : 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm
Thickness : 0.1mm to 12 mm Thk
Length : 12500 mm

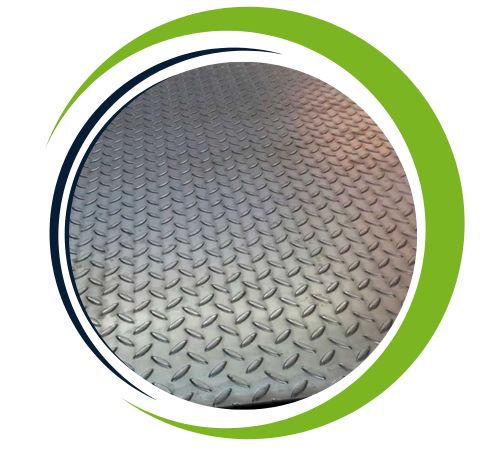

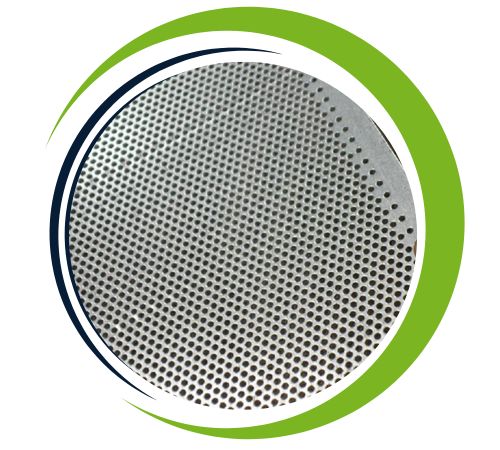

Form : Coils, Foils, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) & Angle, Channel, Tray Etc.
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Plate, Sheet, and Strip : BS3072NA18 (Sheet and Plate), BS3073NA18 (Strip), QQ-N-286 (Plate, Sheet and Strip), DIN 17750 (Plate, Sheet and Strip), ISO 6208 (Plate, Sheet and Strip)
Grade : Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500)
| Sizes in Inches | Sizes in mm |
|---|---|
| .125″ | 3.18mm |
| .134″ | 3.40mm |
| .156″ | 3.96mm |
| .187″ | 4.75mm |
| .250″ | 6.35mm |
| .312″ | 7.92mm |
| .375″ | 9.53mm |
| .500″ | 12.7mm |
| .625″ | 15.9mm |
| .750″ | 19.1mm |
| .875″ | 22.2mm |
| 1″ | 25.4mm |
| 1.125″ | 28.6mm |
| 1.250″ | 31.8mm |
| 1.500″ | 38.1mm |
| 1.750″ | 44.5mm |
| 2″ | 50.8mm |
| 2.500″ | 63.5mm |
| 3″ | 76.2mm |
| Surface finish | Thickness (mm) | Width (mm) |
|---|---|---|

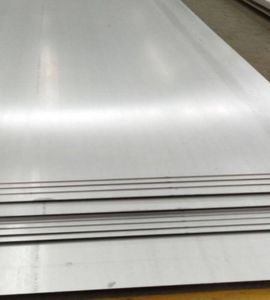

| 2B – Cold rolled, heat treated, pickled, skin passed | 0.25–8.0 | max. 2032 |
| 2D – Cold rolled, heat treated, pickled | 0.4–6.35 | max. 1524 |
| 2E – Cold rolled, heat treated, mechanically descaled | 0.4–8.0 | max. 2032 |
| 2R – Cold rolled, bright annealed | 0.25–3.5 | max. 1524 |
| 2H – Work hardened | 0.4–6.35 | max. 1524 |

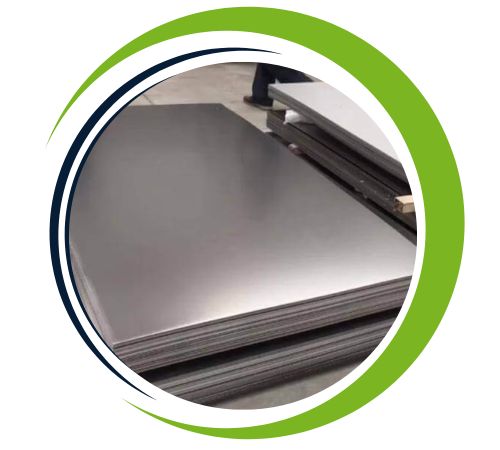

| Polished, brushed | 0.5–4.0 | max. 1524 |
| Stocked Sizes | |
|---|---|
| Size (in inches) | Size (in mm) |
| .125″ | 3.18mm |
| .134″ | 3.40mm |
| .156″ | 3.96mm |
| .187″ | 4.75mm |
| .250″ | 6.35mm |
| .312″ | 7.92mm |
| .375″ | 9.53mm |
| .500″ | 12.7mm |
| .601″ | 15.9mm |
| .750″ | 19.1mm |
| .875″ | 22.2mm |
| 1″ | 25.4mm |
| 1.125″ | 28.6mm |
| 1.250″ | 31.8mm |
| 1.500″ | 38.1mm |
| 1.750″ | 44.5mm |
| 2″ | 50.8mm |
| 2.500″ | 63.5mm |
| 3″ | 76.2mm |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Monel Sheets and Plates offer numerous advantages, including exceptional corrosion resistance, especially in harsh environments like seawater, acidic, and alkaline solutions. They possess high strength, excellent weldability, and good formability, making them suitable for complex applications. Monel is resistant to stress corrosion cracking and oxidation, ensuring durability and reliability over time. The alloy also exhibits outstanding resistance to high-temperature environments, making it ideal for marine, aerospace, and chemical processing industries. With these superior properties, Monel Sheets and Plates provide long-term performance, reducing maintenance costs and enhancing the longevity of components and structures.
| Surface finish | Gauge (in) | Width (in) |
|---|---|---|
| 2B – Cold rolled, heat treated, pickled, skin passed | 10–24 | max. 72* |
| 2D – Cold rolled, heat treated, pickled | 12–24 | max. 60 |
| BA Mexinox only | 18–28 | max. 48 |
| Polished (not brushed) | 11–24 | max. 60 |
| Temper rolled Mexinox only | 13–29 | max. 48 |
Because of its durability, you’ll often find Monel sheets and plates hard at work in marine engineering for things like propeller blades and offshore structures. It’s also a go-to material in chemical plants for handling corrosive substances and in making equipment for oil and gas refineries. Even everyday items like musical instruments and kitchen sinks benefit from its resilient, corrosion-resistant properties, proving its versatility across both heavy industry and specialized applications.
