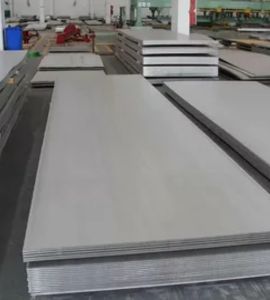

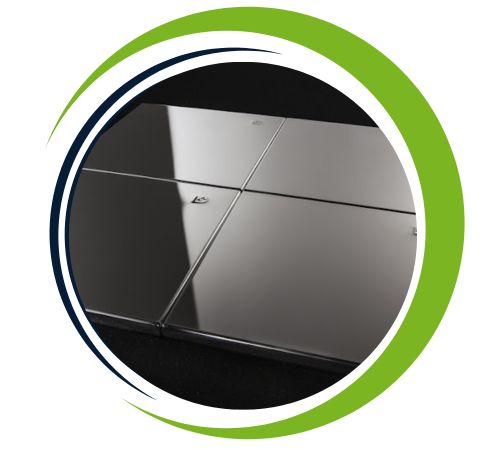

In the heart of Manila’s industrial landscape, Diaz Sheetsandplates stands as a trusted partner for robust and reliable materials. We pride ourselves on providing top-quality Stainless Steel 316L sheets and plates, sourced and supplied with an unwavering commitment to excellence. For businesses that demand durability and corrosion resistance, our products are engineered to meet the rigorous challenges of demanding applications, helping build and protect vital infrastructure and products across the Philippines with dependable strength.
The strength of Stainless Steel 316L lies in its specific composition and mechanical properties. It’s an alloy enhanced with a crucial addition of molybdenum, which significantly boosts its resistance to pitting and corrosion, particularly from chlorides. This low-carbon version also offers excellent toughness and good tensile strength, making it less susceptible to sensitization, or weakening, during welding. These inherent qualities ensure the material maintains its integrity and performance even under stressful conditions.
| Specifications | : | ASTM A240 / ASME SA240 |
| Thickness | : | 4mm-100mm |
| Width | : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |

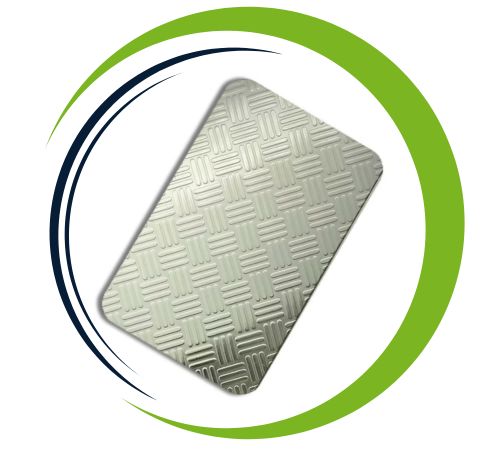

| Surface | : | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |

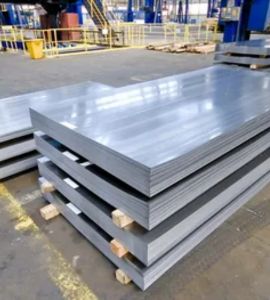

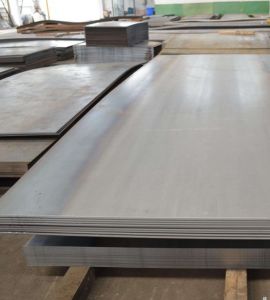

| Finish | : | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |

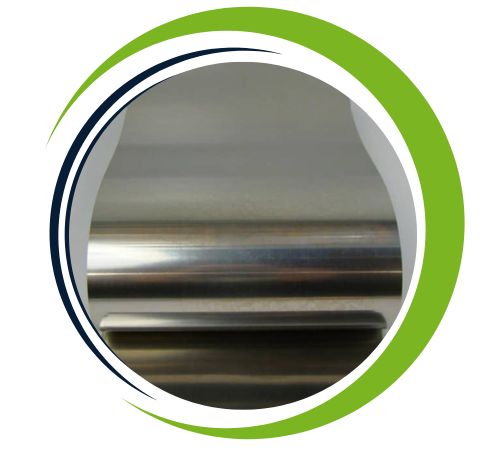

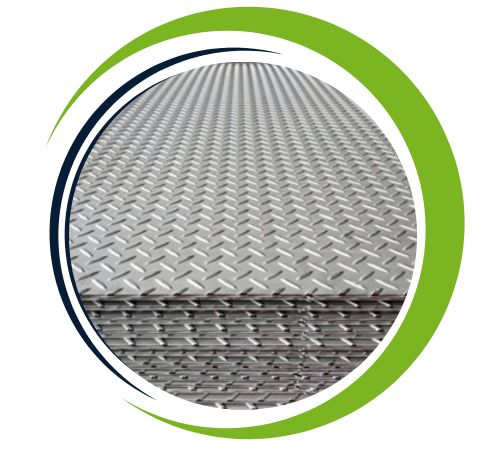

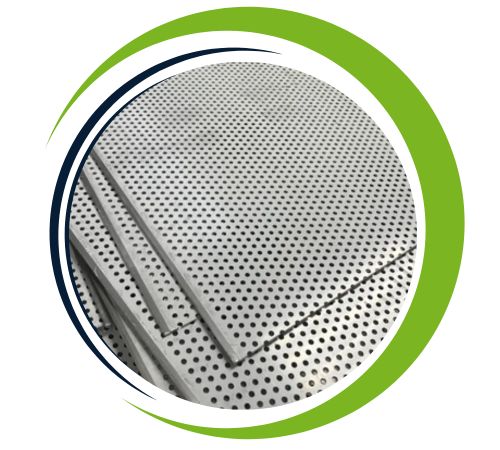

| Form | : | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 316L | 0.035 max | 2 max | 1.00 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.89 min |
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 316L | 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
| Material | Size | Thickness |
| PLATES & SHEETS | 1000 mm x 2000 mm | 0.1mm To 100 mm Thickness |
| 1220 mm x 2440 mm (4′ x 8′) | ||
| 1250 mm x 2500 mm | ||
| 1500 mm x 3000 mm | ||
| 2000 mm x 4000 mm | ||
| 2000 mm x 2000 mm |
| Surface Finish | Definition | Application |
|---|---|---|
| 2B | Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster. | Medical equipment, Food industry, Construction material, Kitchen utensils. |
| BA | Those processed with bright heat treatment after cold rolling. | Kitchen utensils, Electric equipment, Building construction. |
| NO.3 | Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001. | Kitchen utensils, Building construction. |
| NO.4 | Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. | Kitchen utensils, Building construction, Medical equipment. |
| HL | Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. | Building Construction. |
| NO.1 | The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling. | Chemical tank, pipe |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless steel 316L sheets and plates offer many advantages, including excellent corrosion resistance, especially against chloride and harsh environments, making them ideal for marine and chemical consumption use This low-carbon material reduces carbide precipitation, enhances weldability and prevents intergranular corrosion. 316L is highly resistant to high temperature pitting, crevice corrosion and oxidation. It also has excellent mechanical properties, such as high strength, durability and flexibility. These characteristics make it suitable for industries such as pharmaceuticals, food processing and petrochemicals, where reliability and long-term performance are important.
This versatile material is truly a workhorse, finding its purpose in environments where failure is not an option. You’ll find these sheets and plates forming the vital components of chemical processing equipment, pharmaceutical machinery, and marine fittings constantly exposed to saltwater. They are also the preferred choice for fabricating architectural features in coastal areas, critical parts in the food and beverage industry, and even specialized surgical implants, proving their worth wherever hygiene and unwavering resistance to corrosion are absolutely essential.
