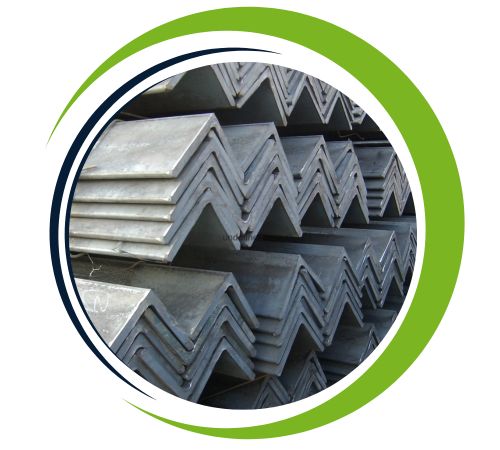

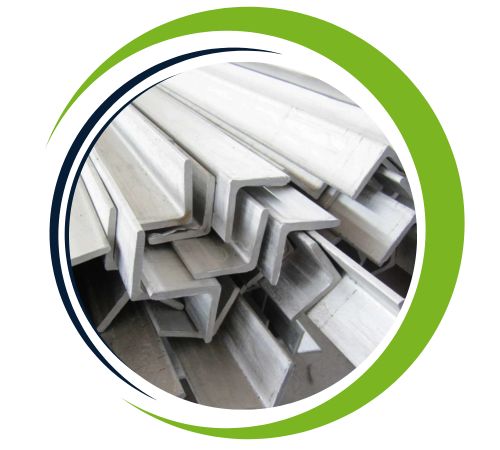

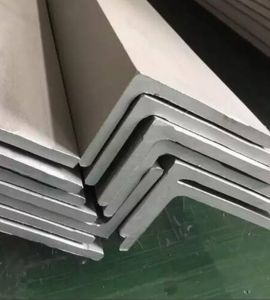

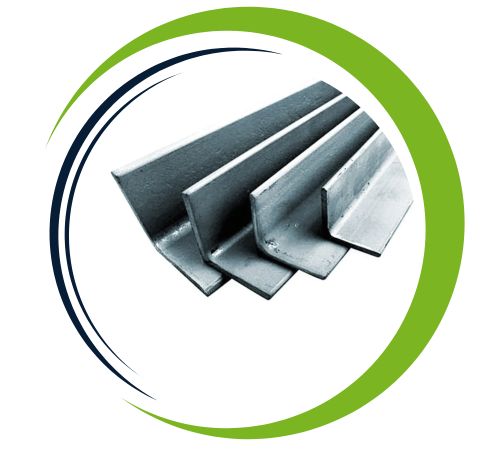

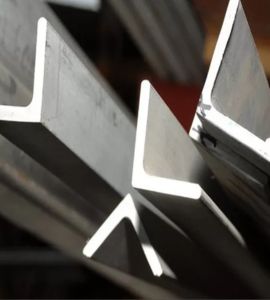

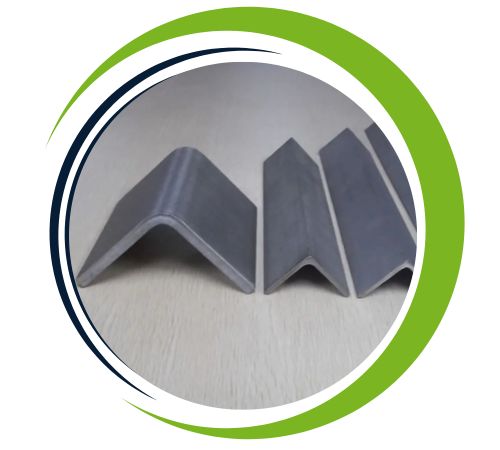

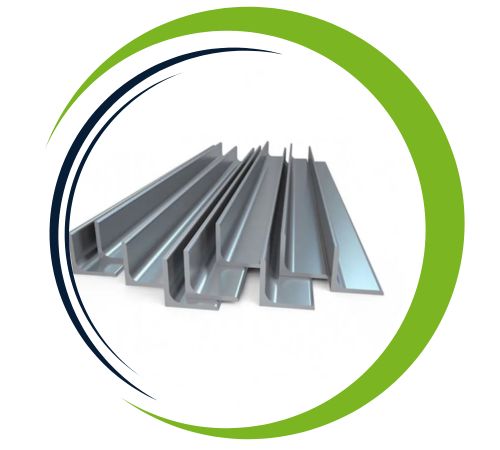

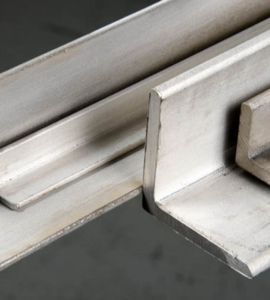

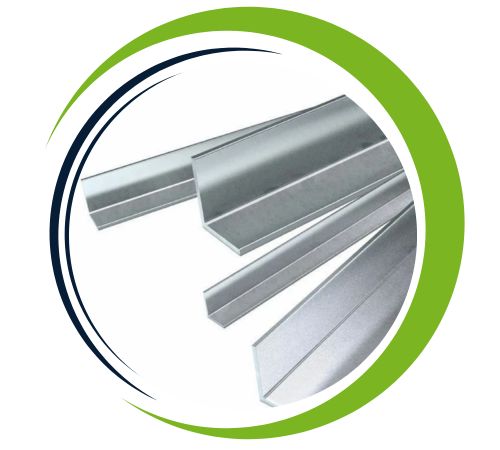

Diaz Sheetsandplates stands as a trusted name in Manila’s industrial supply sector, dedicated to providing top-tier materials like the Stainless Steel 347 Angle. We take pride in sourcing and supplying products that meet the rigorous demands of various trades, ensuring our clients receive nothing short of reliability and quality. Our commitment is to support your projects with materials that deliver exceptional performance and longevity, right here in the heart of the Philippines.
This particular stainless steel is an austenitic alloy with a composition that includes chromium, nickel, and a crucial addition of niobium, which provides excellent protection against corrosion. Its mechanical strength is notable, offering great toughness and durability, especially in high-temperature settings where other materials might fail. The material retains its strength and resists deformation, making it a reliable choice for demanding environments. It’s known for its ability to be heavily used while maintaining structural integrity.
| Specifications | ASTM A 276/A 276M,A 484/A 484M,A 564/A 564M,A 582/A582M,A 638 /A 638M,A705/A705M |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| SS 347 Angle | 5mm to 9mm |
| Thickness | 3.0mm – 120mm |
| Length | 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes |
| Type | Angle, C Channel, U Channel, H Beam, I Beam, T Beam, W Beam, Chain |
| Grade | SS 347 |
|---|---|
| C | 0.08 max |
| Mn | 2 max |
| Si | 1 max |
| P | 0.045 max |
| S | 0.030 max |
| Cr | 17 – 20 |
| Cb | 10xC – 1.10 |
| Ni | 9.0 – 13.0 |
| Fe | 62.74 min |
| Grade | SS 347 |
|---|---|
| Density | 8.0 g/cm3 |
| Melting Point | 1454 °C (2650 °F) |
| Tensile Strength | Psi – 75000 , MPa – 515 |
| Yield Strength (0.2%Offset) | Psi – 30000 , MPa – 205 |
| Elongation | 35% |
| STANDARD | SS 347 |
| WERKSTOFF NR. | 1.4550 |
| UNS | S34700 |
| JIS | SUS 347 |
| BS | – |
| GOST | 08Ch18N12B |
| AFNOR | – |
| EN | X6CrNiNb18-10 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Diaz Sheets and Plates based in Manila, Philippines, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Stainless steel 347 Angle for excellent corrosion resistance, especially in hot environments and harsh chemicals. Stabilization is made of columbium and tantalum, preventing carbide precipitation and ensuring high intergranular corrosion resistance. This makes it ideal for high-stress applications in the aerospace, petrochemical, and power plant industries. It has good weldability, formability and high heat resistance. Stainless steel 347 provides durability and performance under extreme conditions, making it a reliable choice for construction and industrial applications requiring high corrosion and temperature resistance.
| THICKNESS | ||||||
|---|---|---|---|---|---|---|
| Size(mm) | 3 mm | 4 mm | 5 mm | 6 mm | 8 mm | 10 mm |
| 25×25 | 1.13 | 1.47 | 1.80 | 2.11 | 2.69 | — |
| 30×30 | 1.37 | 1.79 | 2.20 | 2.59 | 3.33 | — |
| 32×32 | 1.46 | 1.92 | 2.20 | 2.59 | 3.33 | — |
| 35×35 | 1.61 | 2.11 | 2.60 | 3.07 | 3.97 | — |
| 38×38 | 1.75 | 2.30 | 2.84 | 3.36 | 4.35 | — |
| 40×40 | 1.85 | 2.43 | 3.00 | 3.55 | 4.61 | — |
| 45×45 | — | 2.75 | 3.40 | 4.03 | 5.25 | — |
| 50×50 | — | — | 3.80 | 4.51 | 5.89 | 7.20 |
| 60×60 | — | — | 4.60 | 5.47 | 7.17 | 8.80 |
| 63×63 | — | — | 4.84 | 5.76 | 7.55 | 9.28 |
| 65×65 | — | — | 5.00 | 5.95 | 7.81 | 9.60 |
| 70×70 | — | — | — | 6.43 | 8.45 | 10.40 |
| 75×75 | — | — | — | 6.91 | 9.09 | 11.20 |
| 80×80 | — | — | — | 7.39 | 9.73 | 12.00 |
| 90×90 | — | — | — | 8.35 | 11.01 | 13.60 |
| 100×100 | — | — | — | 9.31 | 12.29 | 15.20 |
You’ll often find the Stainless Steel 347 Angle forming the supportive framework for structures like buildings, bridges, and industrial platforms. Its strength makes it ideal for construction, while its corrosion resistance is a huge asset in the chemical and food processing sectors for equipment supports. Fabricators value it for creating frames, brackets, and machinery parts that need to endure stress and heat. Essentially, it’s the go-to choice when you need a component that combines structural strength with long-term resistance to challenging conditions.
