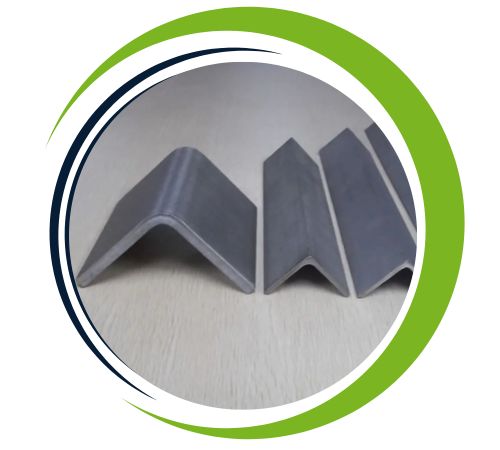

Based in the bustling industrial heart of Manila, Diaz Sheetsandplates stands as a trusted partner for premium metal solutions. We take pride in supplying and manufacturing high-quality Stainless Steel 304L Angle, a versatile and reliable material favored across numerous sectors. Our commitment extends beyond just providing the product; we ensure that every length of angle bar meets rigorous standards, offering our clients not only superior materials but also the dependable service and expertise needed to bring their projects to life with confidence and durability.
Our Stainless Steel 304L Angle is distinguished by its carefully balanced composition, featuring a lower carbon content that enhances its weldability and resistance to corrosion. This grade is primarily composed of chromium and nickel, which give it excellent strength and toughness. These inherent properties make it exceptionally durable, allowing it to perform reliably under stress and in challenging environments where maintaining structural integrity is absolutely essential for long-term success and safety.
| Specifications | ASTM A 276/A 276M,A 484/A 484M,A 564/A 564M,A 582/A582M,A 638 /A 638M,A705/A705M |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| SS 304L Angle | 5mm to 9mm |
| Thickness | 3.0mm – 120mm |
| Length | 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes |
| Type | Angle, C Channel, U Channel, H Beam, I Beam, T Beam, W Beam, Chain |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 304L | 0.035 max | 2 max | 1.0 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 13 | – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 304L | 1.4306/1.4307 | S30403 | SUS 304L | 3304S11 | 03Х18Н11 | Z3CN18‐10 | X2CrNi18-9 / X2CrNi19-11 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Diaz Sheets and Plates based in Manila, Philippines, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
The stainless steel 304L angle offers several advantages, making it a popular choice for structural applications. It provides resistance to corrosion, especially in harsh environments such as the chemical industry, food and marine industries. The low carbon content increases its weldability, reducing the risk of sensing and carbide precipitation. The material provides high strength, durability and oxidation resistance, ensuring long-lasting performance. The stainless steel 304L is versatile, easy to manufacture, and maintains its appearance with minimal maintenance. The resistance to stress corrosion cracking further extends its life under extreme conditions.
| THICKNESS | ||||||
|---|---|---|---|---|---|---|
| Size(mm) | 3 mm | 4 mm | 5 mm | 6 mm | 8 mm | 10 mm |
| 25×25 | 1.13 | 1.47 | 1.80 | 2.11 | 2.69 | — |
| 30×30 | 1.37 | 1.79 | 2.20 | 2.59 | 3.33 | — |
| 32×32 | 1.46 | 1.92 | 2.20 | 2.59 | 3.33 | — |
| 35×35 | 1.61 | 2.11 | 2.60 | 3.07 | 3.97 | — |
| 38×38 | 1.75 | 2.30 | 2.84 | 3.36 | 4.35 | — |
| 40×40 | 1.85 | 2.43 | 3.00 | 3.55 | 4.61 | — |
| 45×45 | — | 2.75 | 3.40 | 4.03 | 5.25 | — |
| 50×50 | — | — | 3.80 | 4.51 | 5.89 | 7.20 |
| 60×60 | — | — | 4.60 | 5.47 | 7.17 | 8.80 |
| 63×63 | — | — | 4.84 | 5.76 | 7.55 | 9.28 |
| 65×65 | — | — | 5.00 | 5.95 | 7.81 | 9.60 |
| 70×70 | — | — | — | 6.43 | 8.45 | 10.40 |
| 75×75 | — | — | — | 6.91 | 9.09 | 11.20 |
| 80×80 | — | — | — | 7.39 | 9.73 | 12.00 |
| 90×90 | — | — | — | 8.35 | 11.01 | 13.60 |
| 100×100 | — | — | — | 9.31 | 12.29 | 15.20 |
The practical uses for this material are impressively broad, making it a go-to choice for builders and fabricators. You’ll find it forming the sturdy framework for handrails and shelving units, providing essential support in architectural structures, and serving as a key component in the construction of industrial machinery and transportation equipment. Its excellent corrosion resistance also makes it ideal for projects in more demanding settings, from food processing plants to coastal installations, where it reliably stands up to moisture and harsh chemicals.
