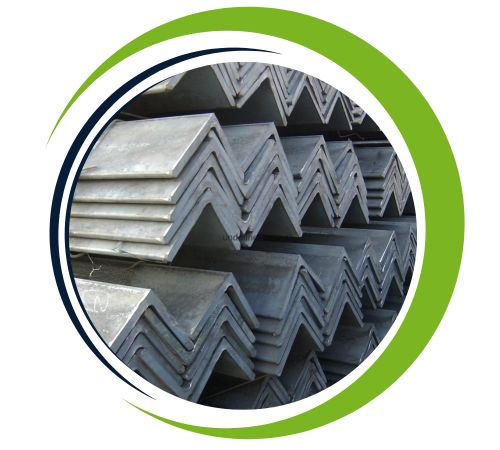

In the heart of Manila’s industrial sector, Diaz Sheetsandplates stands as a trusted name for quality steel, proudly offering the Stainless Steel 317L Angle to builders and fabricators across the Philippines. We understand that exceptional projects demand materials that can truly endure, which is why we focus on supplying this superior-grade angle with a commitment to consistent quality and reliable service, supporting the backbone of the nation’s infrastructure and manufacturing.
What makes this particular alloy so reliable is its carefully balanced composition. It’s enriched with higher levels of molybdenum, chromium, and nickel, which work together to create a material with outstanding resistance to corrosion, especially against chlorides and acids. This is paired with excellent mechanical strength and durability, allowing it to maintain its integrity under significant stress and in challenging temperature ranges, making it a fundamentally sturdy choice.
Specifications : ASTM A276, ASTM A479 / ASME SA276, ASME SA479
Angle Size Range : 20 x 20 mm to 100 x 100 mm
Angles Thickness : 3 to 12 mm (depending on size)
Channel Size Range : Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness : 5 to 6 mm (depending on size)
Length : 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 317L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 3.00 – 4.00 | 11.00 – 15.00 | 57.89 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.9 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
| SS 317L | 1.4438 | S31703 | SUS 317L | X2CrNiMo18-15-4 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
The stainless steel 317L angle provides excellent corrosion resistance, especially in aggressive environments with acids and chlorides, due to its high malybdenum content. It has excellent strength and stability, making it ideal for construction applications. The low carbon content reduces carbide precipitation during welding, resulting in stronger and longer lasting joints. The alloy provides excellent thermal and oxidation resistance, allowing it to be used at higher temperatures. Additionally, the 317L Angle is versatile, easy to manufacture, and requires little maintenance, making it cost-effective for the chemical, marine and industrial industries.
| Size in Inches | Est. Weight per Ft. Lbs. | Est. Weight per 20′ Bar |
|---|---|---|
| 3/4 x 3/4 x 1/8 | 0.59 | 11.80 |
| 1 x 1 x 1/8 | 0.80 | 16.00 |
| 1 x 1 x 3/16 | 1.16 | 23.20 |
| 1 x 1 x 1/4 | 1.49 | 29.80 |
| 1-1/4 x 1-1/4 x 1/8 | 1.01 | 20.20 |
| 1-1/4 x 1-1/4 x 3/16 | 1.48 | 29.60 |
| 1-1/4 x 1-1/4 x 1/4 | 1.92 | 38.40 |
| 1-1/2 x 1-1/2 x 1/8 | 1.23 | 24.60 |
| 1-1/2 x 1-1/2 x 3/16 | 1.80 | 36.00 |
| 1-1/2 x 1-1/2 x 1/4 | 2.34 | 46.80 |
| 2 x 2 x 1/8 | 1.65 | 33.00 |
| 2 x 2 x 3/16 | 2.44 | 48.80 |
| 2 x 2 x 1/4 | 3.19 | 63.80 |
| 2 x 2 x 3/8 | 4.70 | 94.00 |
| 2-1/2 x 2-1/2 x 3/16 | 3.07 | 61.40 |
| 2-1/2 x 2-1/2 x 1/4 | 4.10 | 82.00 |
| 3 x 3 x 1/4 | 4.90 | 98.00 |
| 4 x 4 x 1/4 | 6.60 | 132.00 |
| 4 x 4 x 3/8 | 9.80 | 196.00 |
This impressive resilience makes the 317L angle a natural fit for demanding environments where failure is not an option. You’ll find it forming the essential framework in chemical processing plants, pulp and paper mills, and pollution control equipment. It’s also a cornerstone in constructing coastal structures, marine components, and even in specialized architectural features, proving its worth wherever exposure to harsh elements is a constant challenge.
