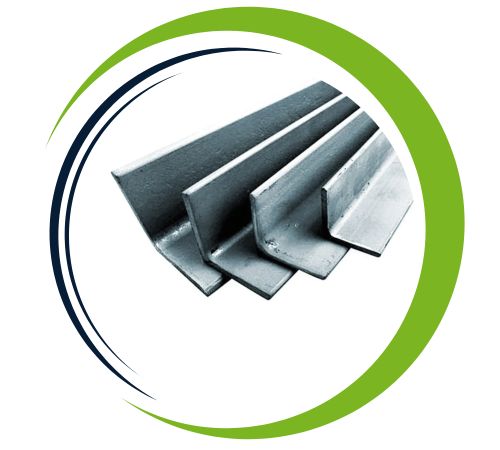

Strategically located in the industrial heart of Manila, Diaz Sheetsandplates stands as a seasoned and reliable partner for your construction and fabrication requirements. We specialize in providing high-quality Stainless Steel 202 Angle, sourcing and stocking material that meets rigorous standards for durability and performance. Our commitment goes beyond supply; we offer accessible expertise and a customer-centric approach, ensuring you receive not just the product, but the right guidance for your projects, big or small. Our efficient logistics network guarantees timely delivery across the Philippines.
Stainless Steel 202 is a chromium-manganese-nickel alloy designed to offer an excellent balance of performance and cost-effectiveness. Its composition provides good corrosion resistance, making it a practical choice for a variety of environments. Mechanically, this grade is known for its impressive strength and dependable durability. It possesses good formability and weldability, allowing it to be easily fabricated into various structures and frameworks. This combination of properties makes it a versatile and economical material for numerous applications without compromising on structural integrity.
| Specifications | ASTM A 276/A 276M,A 484/A 484M,A 564/A 564M,A 582/A582M,A 638 /A 638M,A705/A705M |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| SS 202 Angle | 5mm to 9mm |
| Thickness | 3.0mm – 120mm |
| Length | 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes |
| Type | Angle, C Channel, U Channel, H Beam, I Beam, T Beam, W Beam, Chain |
| Grade 202 | C | Mn | Si | P | S | Cr | Ni | N |
| max. | 0.15 | 7.50-10 | 1 | 0.060 | 0.030 | 17- 19 | 4-6 | 0.25 |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min |
| 202 | 515 | 275 | 40 |
| STANDARD | UNS | WERKSTOFF NR. |
| SS 202 | S20200 | 1.4373 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless steel 202 angle offers many advantages, including excellent corrosion resistance, making it ideal for use in wet and chemical environments It has excellent strength and durability, and ensures performance reliability in construction applications. This alloy is cost-effective compared to higher grades like 304, while still providing high resistance to oxidation and turbidity. Stainless Steel 202 is highly versatile, easy to manufacture and maintain, and provides aesthetic appeal. It is commonly used in the construction, design and construction industry, providing a balance of energy and cost.
| Sizes (all Dimensions in milimeter) | Approx Weight SS Angle Bar (kilogram/meter) | SS 202 Angle Bar Sizes (all Dimensions in milimeter) | Approx Weight SS 202 Angle Bar (kilogram/meter) |
| 25 x 25 x 3 | 1.13 | 63 x 63 x 8 | 7.50 |
| 25 x 25 x 4 | 1.46 | 65 x 65 x 4 | 4.00 |
| 25 x 25 x 5 | 1.78 | 65 x 65x 5 | 5.02 |
| 30 x 30 x 3 | 1.37 | 65 x 65 x 8 | 7.75 |
| 30 x 30 x 4 | 1.78 | 70 x 70 x 5 | 5.35 |
| 30 x 30 x 5 | 2.20 | 70 x 70 x 6 | 6.40 |
| 40 x 40 x 3 | 1.83 | 75 x 75 x 6 | 6.85 |
| 40 x 40 x 4 | 2.41 | 75 x 75 x 8 | 9.05 |
| 40 x 40 x 5 | 2.97 | 80 x 80 x 6 | 7.35 |
| 50 x 50 x 4 | 3.05 | 80 x 80 x 8 | 9.65 |
| 50 x 50 x 5 | 3.78 | 80 x 80 x 10 | 11.98 |
| 63 x 63 x 4 | 3.90 | 100 x 100 x 8 | 12.20 |
| 63 x 63 x 5 | 3.90 | 100 x 100 x 12 | 18.00 |
The versatility of Stainless Steel 202 Angle makes it a popular choice across diverse sectors. You’ll find it forming the sturdy framework for architectural accents, handrails, and support structures in modern buildings. In industrial settings, it’s essential for constructing machinery guards, support frames, and equipment platforms due to its strength. Its corrosion resistance also makes it suitable for a range of kitchen equipment, food processing fixtures, and ornamental pieces. From the skeleton of a building’s aesthetic features to the functional backbone of industrial operations, this material reliably serves countless purposes.
