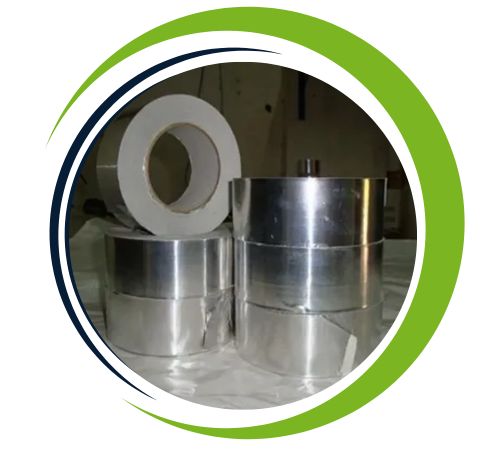

Nestled in the industrial landscape of Manila, Philippines, Diaz Sheetsandplates stands as your trusted partner for high-performance alloys. We take pride in supplying top-tier Monel K500 Coil, a material chosen by industries that demand resilience and longevity. Our commitment is to provide not just a product, but a reliable solution, ensuring your projects are built on a foundation of quality and durability that we proudly represent right here at home.
The strength of Monel K500 comes from its sophisticated composition, primarily nickel and copper, with significant additions of aluminum and titanium. This special formulation allows the alloy to be age-hardened, resulting in impressive mechanical properties. It boasts a high tensile strength, good fatigue resistance, and excellent toughness, allowing it to maintain its integrity under heavy loads. Essentially, it combines the best of both worlds: the superb corrosion resistance of nickel alloys with the added benefit of greater strength.
Specifications : ASTM B127 / ASME SB127
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness : 0.3 mm to 120 mm
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Finish : Hot rolled (HR), Cold rolled coils (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Form : Plain Coils, Shim Coils
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Monel K500 | 0.25 max | 1.5 max | 0.5 max | 0.010 max | 27.00 – 33.00 | 0.5 – 2 | 63.00 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Monel K500 | 8.44 g/cm3 | 1350 °C (2460 °F) | Psi – 160000 , MPa – 1100 | Psi – 115000 , MPa – 790 | 20 % |

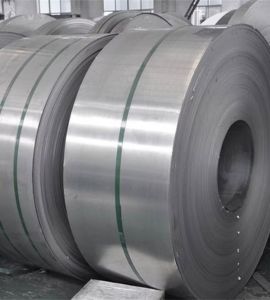

Monel K500 Coil and Slitting Coil offer several advantages, including exceptional corrosion resistance, particularly in seawater and high-temperature environments. They provide excellent mechanical strength and durability, making them suitable for harsh industrial applications. The material’s high resistance to stress-corrosion cracking and superior strength-to-weight ratio ensure reliability and longevity in demanding conditions. Additionally, Monel K500 exhibits good machinability and weldability, enhancing its versatility in various industrial applications.
| STANDARD | WERKSTOFF NR. | UNS | AFNOR | JIS | GOST | BS | EN |
| Monel K500 | 2.4375 | N05500 | – | – | – | – | – |
This unique combination of strength and corrosion resistance makes the Monel K500 Coil an excellent choice for critical components in marine and chemical processing. You’ll often find it used in propeller shafts, pumps, and valves that face constant assault from seawater. In chemical plants, it’s the material of choice for equipment like impellers, processing vessels, and heat exchangers, where it reliably handles corrosive fluids and high-stress conditions without missing a beat.
