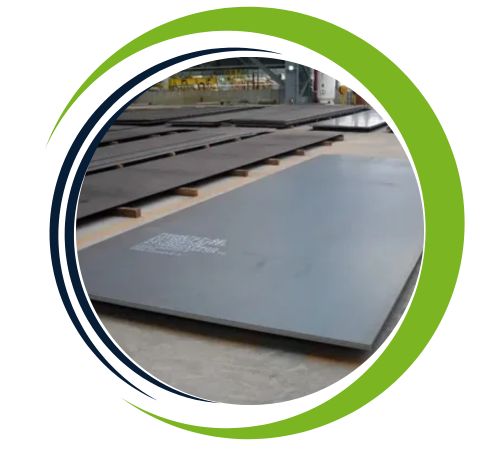

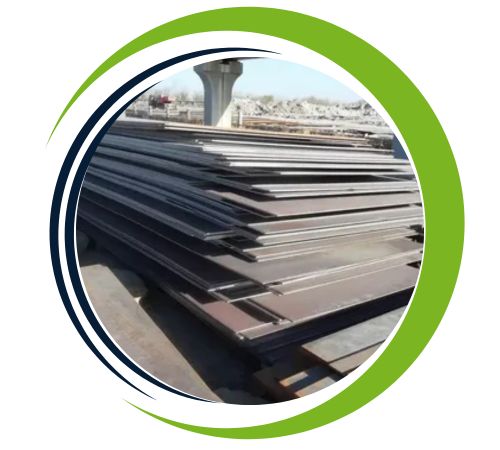

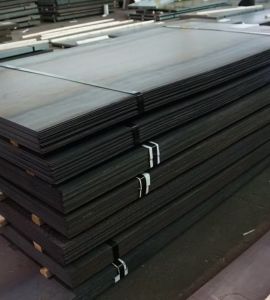

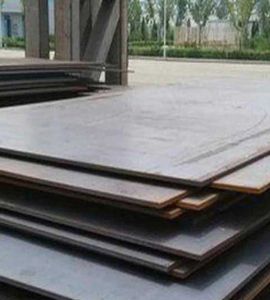

Diaz Sheetsandplates stands as a leading manufacturer and supplier in Manila, Philippines, proudly providing industry with high-strength EN19 sheets and plates. We understand the critical demands of the local industrial sector, which is why our focus is on delivering materials that combine exceptional durability with reliable performance. Our commitment goes beyond supply; we partner with our clients, offering expert guidance to ensure they have the right grade of EN19 for their most challenging projects, backed by dependable service right here in the heart of the Philippines.
The strength of EN19 sheet and plate comes from its carefully balanced composition, primarily chromium, molybdenum, and manganese. This specific blend gives the material its notable mechanical properties, including a very high tensile strength and excellent toughness. It responds beautifully to heat treatment, allowing it to be hardened and tempered to achieve precisely the right balance of strength and shock resistance needed for demanding applications, making it a truly versatile engineering steel.
| Thickness | from 3mm up to as thick as 150mm |
|---|---|
| Size | from 2000 x 1000mm up to 4000 x 2000mm |
| Length | 3000mm-18000mm |
| Supply Condition | As Rolled, Normalized Rolling, Furnace Normalizing, Vacuum Degassing, Simulated Post-Weld Heat Treatment or as per customer requirement. |
| Impact tested | -52° C |
| Process of Manufacturing | Hot-Rolled (HR) |
| Grade | Mn | Si | C | Cr | P | Ni | S | Mo |
| EN – 19 | .50 – .80 | .10 – .35 | .35 – .45 | .90 – 1.40 | .040 | – | .040 | .20 – .40 |
| Max Stress | 850-1000 n/mm2 | |
| Impact KCV | 55 Joules Min | |
| Hardness | 248-302 HB | |
| Yield Stress | 700 N/mm2 Min | |
| 0.2% Proof Stress | 680 N/mm2 Min | subject to ruling section |
| Elongation | 9% Min |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Diaz Sheets and Plates based in Manila, Philippines, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
EN19 sheets and plates have high tensile strength (850-1000 MPa), excellent durability, and resistance to fatigue and fatigue These properties make them ideal for demanding applications in the automotive, aerospace and space engineering industries. EN 19 also exhibits excellent machinability, facilitating the handling of complex parts. Its greater strength and its ability to withstand high pressures and impact loads further enhance its versatility. In addition, it can be heat treated to achieve advanced mechanical properties, making it suitable for a wide range of industrial applications.
Yes, we offer custom sizes for EN19 Sheet and Plates to meet specific project needs. Our team at Diaz Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
Because of its remarkable strength and adaptability, EN19 sheets and plates are the go-to choice for components that face intense stress and wear. You’ll commonly find it used in the construction of high-strength axles, shafts, gears, and bolts, especially within the heavy machinery and automotive industries. It’s also ideal for frames, brackets, and other critical parts in construction and engineering projects where failure is not an option, providing a reliable foundation for building robust and long-lasting equipment.
