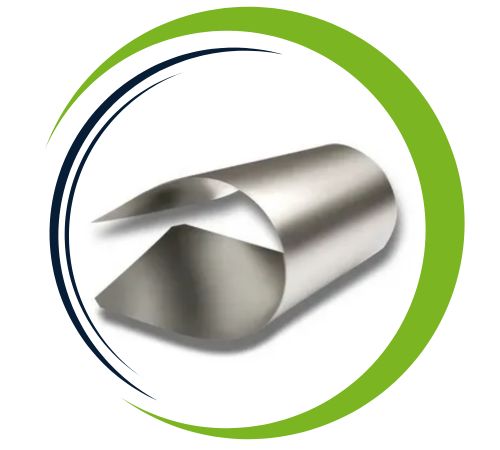

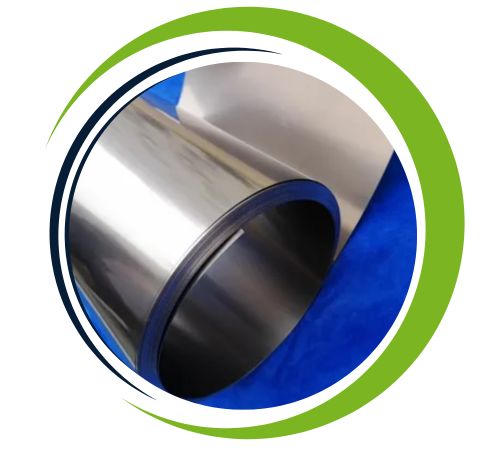

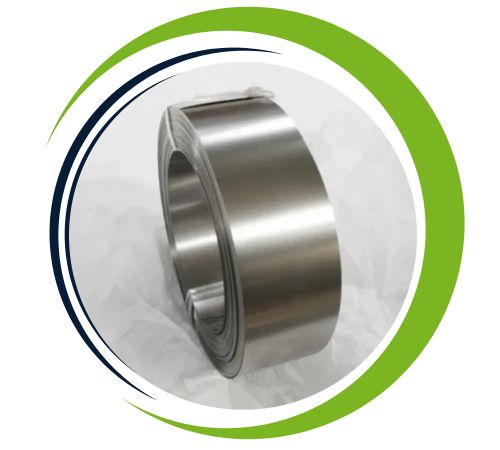

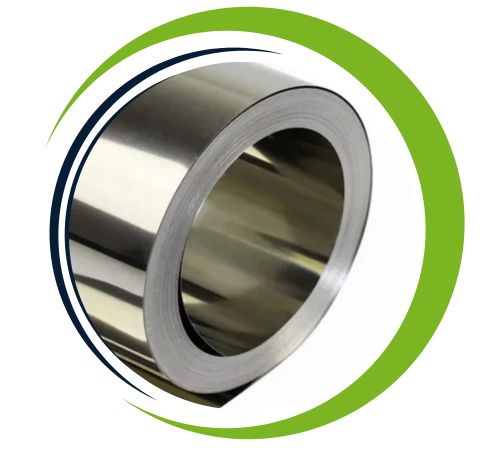

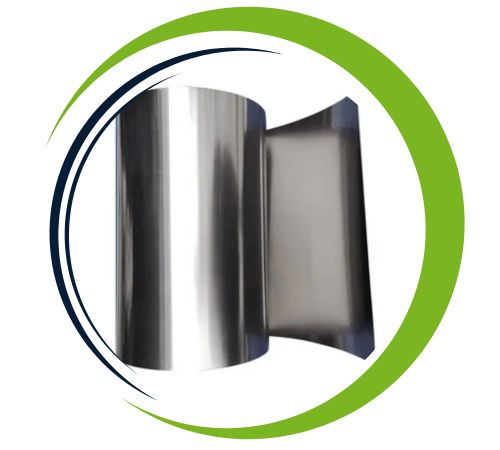

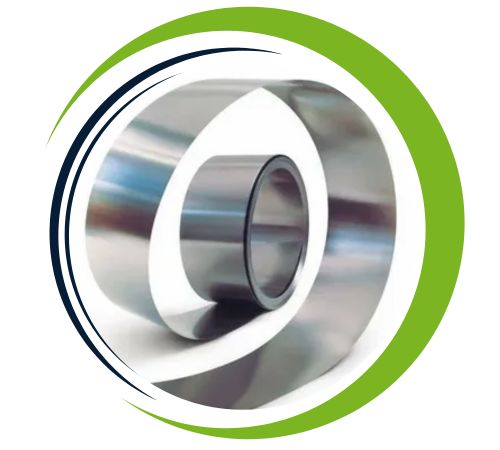

Diaz Sheetsandplates is a reputable manufacturer and supplier of Titanium Grade 2 Foils located in Manila, Philippines. They offer top-notch titanium products that are celebrated for their remarkable corrosion resistance, formability, and strength. Crafted from commercially pure titanium, these foils excel in both industrial and marine settings. Diaz Sheetsandplates is committed to precision manufacturing and strictly follows international standards, providing Titanium Grade 2 Foils that are perfect for chemical processing, marine, aerospace, and medical applications where lightweight, durable, and corrosion-resistant materials are essential.
Standards : ASTM B265 / ASME SB265
Width : 3.2mm – 1500mm
Form : Coils, Foils, Rolls, Strip, Flats, Blank (Circle), Ring (Flange) etc.
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Thickness : 0.1mm to 12 mm Thk
Length : 500mm to 12000mm
Width : 100mm to 3000mm
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 2 | 3.7035 | R50400 |
| Grade | C | Fe | N | Ti | H | O |
| Titanium Gr. 2 | 0.1 max | 0.3 max | 0.03 max | 99.2 min | 0.015 max | 0.25 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 4.5 g/cm3 | 1665 °C (3030 °F) | Psi – 49900 , MPa – 344 | Psi – 39900 , MPa – 275 | 20 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Diaz Sheets and Plates based in Manila, Philippines, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Titanium Grade 2 Foils offer numerous advantages, making them a preferred choice across industries. They feature exceptional corrosion resistance, especially in aggressive environments like seawater and chemical processing. Lightweight yet strong, they provide an excellent strength-to-weight ratio, enhancing efficiency in applications requiring reduced weight. The foils also offer excellent weldability and formability, allowing ease in fabrication for complex designs. With superior biocompatibility, they are ideal for medical implants and devices. Additionally, their resistance to extreme temperatures ensures reliable performance in aerospace, automotive, and industrial applications, delivering durability and long-term value.
| Size (mm) | Weight per (Kg) | Size (mm) | Weight per (Kg) |
|---|---|---|---|
| 2000 x 1000 x 2.0 | 32.7 | 2000 x1000 x 0.9 | 14.7 |
| 3000 x 1500 x 1.5 | 55.3 | 2500 x1250 x 0.7 | 17.9 |
| 3000 x 1500 x 2.0 | 73.7 | 2000 x1000 x 1.0 | 16.4 |
| 2500 x 1250 x 1.5 | 38.4 | 2000 x1000 x 0.7 | 11.5 |
| 3000 x 1500 x 3.0 | 112.0 | 2000 x1000 x 1.5 | 24.6 |
| 2500 x 1250 x 2.0 | 51.2 | 2500 x1250 x 0.9 | 23.0 |
| 2000 x 1000 x 2.5 | 40.9 | 2500 x1250 x 1.0 | 25.6 |
| 2500 x 1250 x 2.5 | 63.9 | 3000 x1500 x 1.0 | 36.8 |
| 2500 x 1250 x 3.0 | 77.5 | 3000 x1500 x 1.2 | 44.2 |
| 3000 x 1500 x 2.5 | 92.1 | 2000 x1000 x 1.2 | 19.6 |
| 2000 x 1000 x 3.0 | 49.6 | 2500 x1250 x 1.2 | 30.7 |
Yes, we offer custom sizes for Titanium Grade 2 Foils to meet specific project needs. Our team at Diaz Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
Titanium Grade 2 Foils find extensive use in the chemical processing, marine, aerospace, and medical industries. They are perfect for creating heat exchangers, condensers, linings, and chemical equipment that face corrosive environments. In aerospace, they are utilized for lightweight structural components, while in the medical field, they are used in surgical instruments and implants due to their biocompatibility. These foils are also employed in desalination plants, power generation, and electroplating industries, delivering superior performance, durability, and reliability even in demanding operational conditions.
