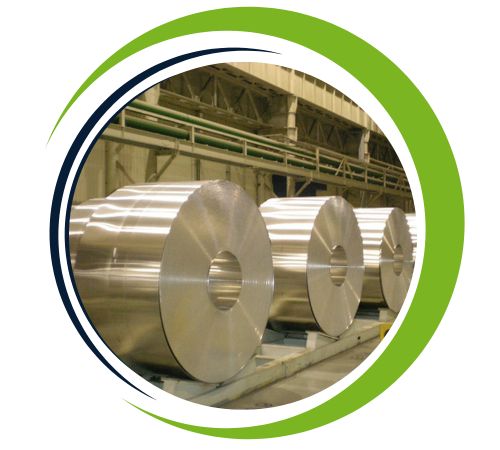

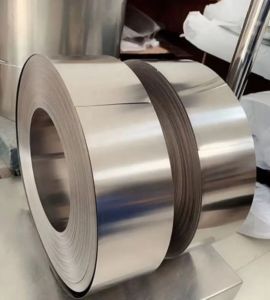

Nestled in Manila, Philippines, Diaz Sheetsandplates has built a trusted reputation as a dedicated manufacturer and supplier, with a particular expertise in high-grade Stainless Steel 301 foils. We understand that the success of your project relies on the quality of your materials, which is why we ensure our 301 foils are crafted to meet the most exacting standards, providing you with a reliable and versatile solution right when you need it.
This specific stainless steel is part of the austenitic family, characterized by a balanced composition that typically includes around 17% chromium and 7% nickel. What makes 301 particularly useful is its remarkable response to cold working; it rapidly increases in strength and hardness. In its annealed state, it offers good ductility for forming, but with further processing, it can achieve significantly higher tensile strength, making it a favorite for demanding applications.
| Item | Stainless Steel 301 foil(Hot rolled, cold rolled) | |
| Thickness | 0.025 to 3 mm and as per Customer Requirement | |
| Width | 3 mm to 2000 mm and as per Customer Requirement | |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc | |
| Standard | JIS, AISI, ASTM, GB, DIN, EN, etc | |
| Surface | the surface and finish of stainless steel 301 foil: 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
|
Element |
Percent by Weight |
|
|
Type 301 ANN |
||
|
Carbon |
0.150 maximum |
|
|
Manganese |
2.000 maximum |
|
|
Phosphorus |
0.045 maximum |
|
|
Sulfur |
0.030 maximum |
|
|
Silicon |
1.00 maximum |
|
|
Chromium |
16.00 – 18.00 |
|
|
Nickel |
6.000 – 8.000 |
|
|
Nitrogen |
0.10 maximum |
» Melting Range: 2250-2950°F (1399-1421°C)
» Density: 0.2850 lb/in3 (7.88g/cm3
» Specific Gravity: 8.03
» Modulus of Elasticity in Tension: 28•106 psi (193 GPa)*
|
Temperature Range |
Mean Coefficient of Thermal Expansion |
|||
|
°C |
°F |
cm/cm°C |
in/in/°F |
|
|
20-100 |
68-212 |
16.6·10-6 |
9.2·10-6 |
|
|
20-300 |
68-572 |
17.6·10-6 |
9.8·10-6 |
|
|
20-500 |
68-932 |
18.6·10-6 |
10.3·10-6 |
|
|
20-700 |
68-1292 |
19.5·10-6 |
10.8·10-6 |
|
|
20-871 |
68-1600 |
19.8·10-6 |
11.0·10-6 |
|
UNS S30100 Foils offer several advantages, including excellent corrosion resistance, particularly in mild and atmospheric environments. Their high tensile strength and work-hardening properties make them ideal for applications requiring strength and durability. The material’s excellent formability allows for easy shaping and cold working, while maintaining its mechanical properties. Stainless Steel 301 Foils are also highly resistant to oxidation, offering long-term reliability in various industries, including automotive, aerospace, and manufacturing. Their versatility, combined with good weldability, makes them an optimal choice for a wide range of industrial applications.
| STANDARD | WERKSTOFF NR. | UNS | JIS | AFNOR | BS | GOST | EN | |
| SS 301 | 1.4310 | S30100 | SUS 301 | – | – | – | – |
You’ll often find Stainless Steel 301 foils hard at work in a variety of everyday and specialized items. Its excellent durability and resistance to corrosion make it ideal for springs, conveyor belts, and clips within machinery. Beyond industrial uses, it’s beautifully formed into kitchen equipment, restaurant sinks, and even architectural elements like wall panels or trims, proving just how adaptable and dependable this material truly is.
