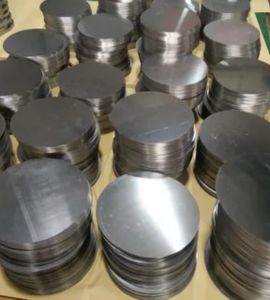

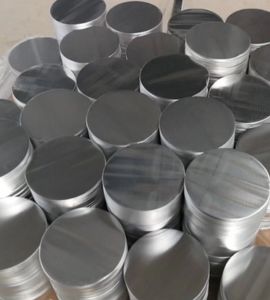

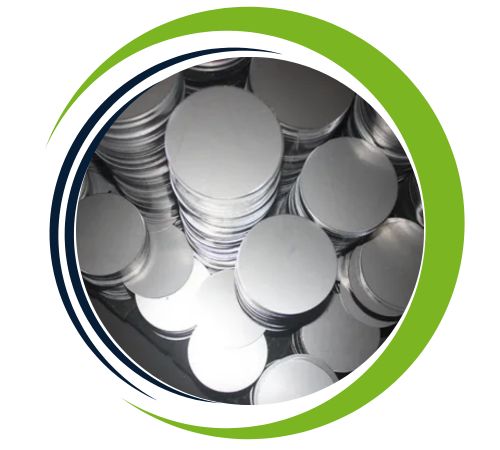

From the bustling industrial heart of Manila, Diaz Sheetsandplates stands as your trusted partner for premium metal solutions, specializing in the reliable supply of Nickel Alloy 200 Circles. We understand that the integrity of your components starts with the quality of your raw materials. That’s why we are committed to providing circles that are meticulously crafted to meet stringent standards, ensuring you receive a product that delivers exceptional performance and reliability for your most demanding projects, backed by our deep industry expertise and customer-focused service.
Nickel Alloy 200 is prized for its exceptional purity, consisting of over 99% nickel, which gives it its remarkable resistance to corrosive environments, especially caustic alkalies. This composition also delivers excellent mechanical properties, including good thermal and electrical conductivity. It maintains good ductility and a respectable tensile strength across a wide range of temperatures, from cryogenic levels up to moderately high heats. It’s this reliable combination of strength and workability that makes it such a versatile and dependable material for engineers and fabricators.
| Standard | ASTM B162, ASME SB162 |
| Dimensions | ASTM, ASME and API |
| Standard | JIS, AISI, ASTM, GB, DIN, EN, etc. |
| Thickness | 1 Mm To 100 mm. |
| Diameter | Upto 2000 Mm. |
| Circle Diameter | 3″ DIA up to 38″ DIA 1500 lbs max. |
| Circles Form | Cold Rolled, Small Flat, Industrial, Proof Machined, Perforated, Forged Steel, Hot Rolled Circle. |
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Nickel 200 | 0.15 max | 0.35 max | 0.35 max | 0.01 max | 0.25 max | 0.40 max | 99.0 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Nickel 200 | 8.9 g/cm3 | 1446 °C (2635 °F) | Psi – 67000 , MPa – 462 | Psi – 21500 , MPa – 148 | 45 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Nickel Alloy 200 | 2.4066 | N02200 | NW 2200 | NA 11 | НП-2 | N-100M | Ni 99.2 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Size | 18 G. | 19 G. | 20 G. | 22 G. | 24 G. | 26 G. |
| .4.5 | .0-107 | 0-085 | 0-080 | 0-062 | 0.049 | 0-040 |
| 5 | 0-120 | 0-095 | 0-090 | 0-070 | 0-055 | 0-045 |
| 5.5 | 0-146 | 0-119 | 0-109 | 0-085 | 0-066 | 0-054 |
| 6 | 0-172 | 0-136 | 0-130 | 0-100 | 0-079 | 0-064 |
| 6.5 | 0-200 | 0-153 | 0-150 | 0-128 | 0-093 | 0-074 |
| 7 | 0-235 | 0-190 | 0-176 | 0-136 | 0-107 | 0-088 |
| 7.5 | 0.270 | 0.212 | 0.201 | 0-157 | 0-123 | 0-100 |
| 8 | 0-307 | 0-240 | 0-230 | 0-180 | 0-140 | 0-115 |
| 8.5 | 0-347 | 0-270 | 0-262 | 0-202 | 0-156 | 0-130 |
| 9 | 0-388 | 0-330 | 0-301 | 0-230 | 0-178 | 0-145 |
| 9.5 | 0-472 | 0-342 | 0-324 | 0-252 | 0-198 | 0-162 |
| 10 | 0-480 | 0-380 | 0-360 | 0-280 | 0-220 | 0-180 |
| 11 | 0-580 | 0-450 | 0-435 | 0-338 | 0-266 | 0-218 |
| 12 | 0-690 | 0-540 | 0-518 | 0-403 | 0-318 | 0-253 |
| 13 | 0-811 | 0-640 | 0-508 | 0-608 | 0-371 | 0-304 |
| 14 | 0-940 | 0-750 | 0-708 | 0-558 | 0-430 | 0-352 |
| 15 | 1-080 | 0-860 | 0-808 | 0-650 | 0-495 | 0-405 |
| 16 | 1-228 | 0-960 | 0-921 | 0-736 | 0-563 | 0-460 |
| 17 | 1-382 | 1-080 | 0-940 | 0-809 | 0-635 | 0-560 |
| 18 | 1-595 | 1-200 | 1-116 | 0-907 | 0-712 | 0-683 |
| 19 | 1-732 | 1-350 | 1-300 | 1-010 | 0-794 | 0-750 |
| 20 | 1-920 | 1-400 | 1-340 | 1-120 | 0-880 | 0-785 |
Nickel alloy 200 circle offers many advantages, including excellent corrosion resistance, especially in alkaline and acidic environments, making it ideal for chemical processing and marine applications Maintenance of good machinery at high temperatures , ensuring reliability under difficult circumstances. The alloy has a high thermoelectric conductivity, making it useful in heat exchangers and electrical components. In addition, it has excellent formability and weldability, making it easy to manufacture in a variety of shapes including circular without compromising its strength or durability Its oxidation resistance and ease of maintenance give it versatility continues to grow.
The uses for these circles are extensive, particularly in industries where corrosion is a constant challenge. You’ll commonly find them being machined into crucial components for chemical processing equipment, such as valves and pump parts, where they handle caustic soda and other aggressive chemicals. They are also essential in food processing for their non-contaminating properties, in aerospace for electronic components, and in the production of synthetic fibers. Essentially, wherever uncompromising purity and resistance to degradation are paramount, Nickel Alloy 200 provides a proven and effective solution.
