In the heart of Manila’s industrial landscape, Diaz Sheetsandplates stands as your trusted partner for high-performance materials. We specialize in supplying and manufacturing Monel 400 sheets and plates, offering a reliable source for this exceptional alloy right here in the Philippines. Our commitment is to provide not just quality metal, but dependable service and expert support for the diverse needs of local industries, ensuring your projects are built on a foundation of strength and durability.
Monel 400 is renowned for its unique composition, primarily a blend of nickel and copper, which gives it a natural edge against corrosion. This alloy maintains impressive strength and toughness across a wide range of temperatures, from sub-zero chill to high heat. It doesn’t harden quickly under stress, making it remarkably workable for fabrication. Essentially, it delivers the best of both worlds: the resilience of nickel and the corrosion-fighting ability of copper in one robust material.
Specifications :ASTM B127 / ASME SB127, AMS 4544
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 4000mm, etc
Thickness : 0.3 mm to 120 mm
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.

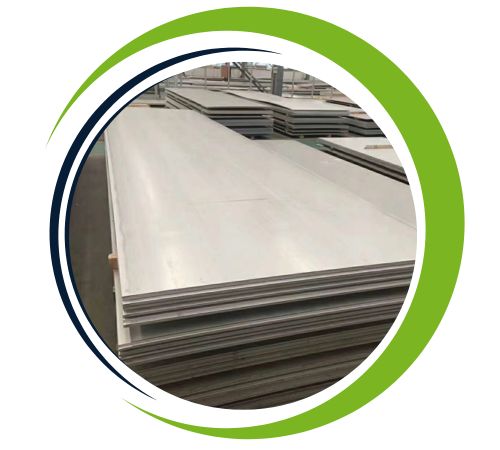

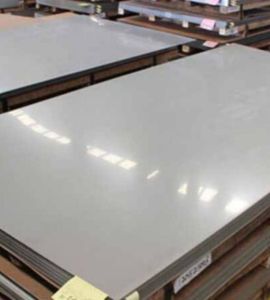

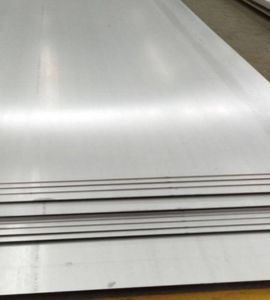

Finish : Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Form : Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange)
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Monel 400 | 0.30 max | 2.00 max | 0.50 max | 0.024 max | 28.00 – 34.00 | 2.50 max | 63.00 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Monel 400 | 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80,000 , MPa – 550 | Psi – 35,000 , MPa – 240 | 40 % |
| Plate Surface finish | Gauge (in) | Width (max in) |
|---|---|---|
| 2B – Cold rolled, heat treated, pickled, skin passed Plate | 10–24 | 72* |
| 2D – Cold rolled, heat treated, pickled plate | 12–24 | 60 |
| BA Mexinox only | 18–28 | 48 |

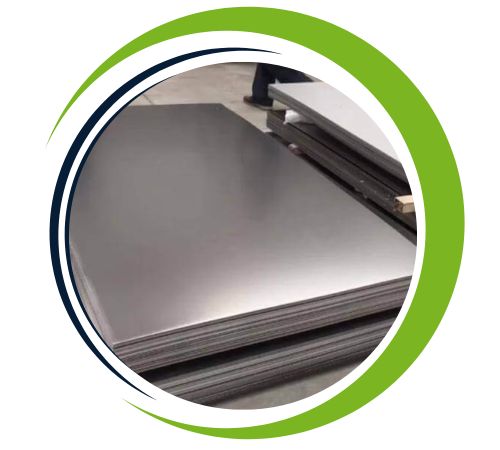

| Polished plate (not brushed) | 11–24 | 60 |
| Temper rolled plate Mexinox only | 13–29 | 48 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Monel 400 Sheets and Plates offer several key advantages including exceptional corrosion resistance, particularly in seawater, acids, and alkaline environments. They exhibit excellent strength and durability at both high and low temperatures, making them ideal for demanding industrial applications. With good weldability, formability and resistance to stress corrosion cracking. Monel 400 is versatile for various industries, including marine, chemical, and aerospace. Its resistance to oxidation and wear ensures long-term performance, reducing maintenance and replacement costs. Overall Monel 400 provides reliability, longevity, and high performance in harsh environments.
| Thickness | Plate Weight per Unit Area | Density |
|---|---|---|
| 3/16 inches | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 inches | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
The remarkable properties of Monel 400 make it indispensable in challenging environments. You’ll find it hard at work in marine engineering for propeller shafts and pump components, confidently resisting saltwater corrosion. It’s essential in chemical and oil and gas processing for vessels and valves handling corrosive substances. Beyond heavy industry, its reliability is valued in freshwater plants, heat exchangers, and even specialized architectural applications, proving its versatility wherever durability in the face of harsh elements is non-negotiable.
