In the heart of Manila’s industrial landscape, Diaz Sheetsandplates stands as a trusted partner for high-performance materials, specializing in the supply of Monel 400 Circle. We understand that the integrity of your project begins with the quality of its core components. That’s why we are committed to providing expertly crafted Monel 400 circles, offering a reliable solution for the most demanding environments right here in the Philippines, backed by our dedication to exceptional service and local expertise.
The strength of Monel 400 lies in its unique composition, a nickel-copper alloy that naturally resists corrosion by seawater and various chemical solutions. This material is not just about toughness; it maintains excellent mechanical properties, including good strength and ductility across a wide temperature range, from sub-zero up to around 1000°F. It’s this combination of inherent resilience and reliable performance that makes it such a valued engineering material for challenging applications where failure is not an option.
| Standard | ASTM B127, ASME SB127 |
| Dimensions | ASTM, ASME and API |
| Standard | JIS, AISI, ASTM, GB, DIN, EN, etc. |
| Thickness | 1 Mm To 100 mm. |
| Diameter | Upto 2000 Mm. |
| Circle Diameter | 3″ DIA up to 38″ DIA 1500 lbs max. |

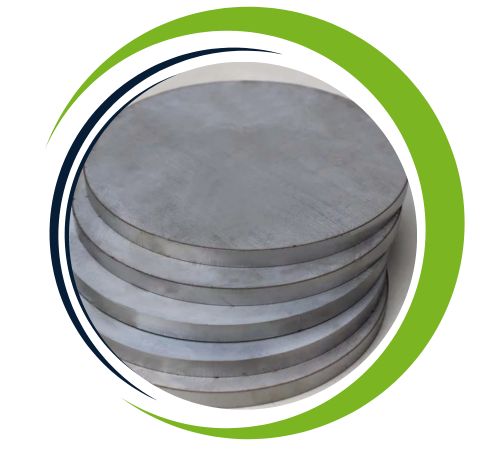

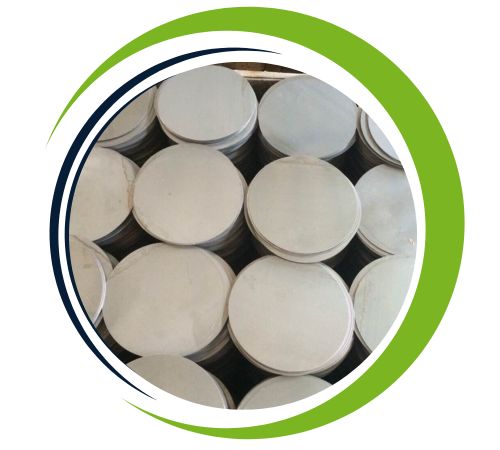

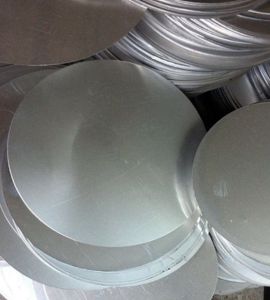

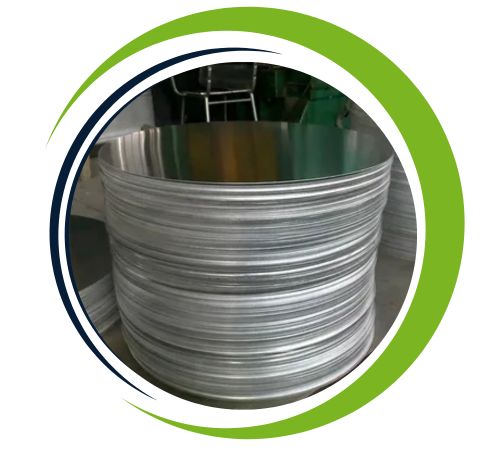

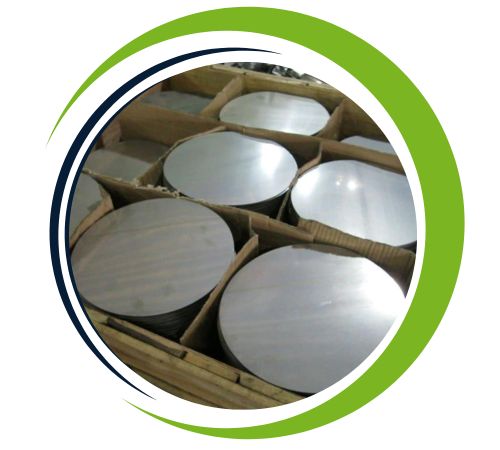

| Circles Form | Cold Rolled, Small Flat, Industrial, Proof Machined, Perforated, Forged Steel, Hot Rolled Circle. |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Grade | Ni | C | Al | Mn | Si | Fe | Cu | S |
| Monel 400 | 63.0 min | 0.3 max | 0.50 max | 2.0 max | 0.5 max | 1.0 – 2.5 | 28.0 – 34.0 | 0.02 max |
| Property | Value |
|---|---|
| Tensile Strength | 70-95 ksi (485-655 MPa) |
| Yield Strength | 30 ksi (205 MPa) min |
| Elongation | 35% min in 2 inches (50 mm) |
| Hardness | Rockwell B70 max |
| Modulus of Elasticity | 28 x 106 psi (193 GPa) |
| Poisson’s Ratio | 0.31 |
UNS N04400 Circle offers several advantages, including outstanding corrosion resistance in marine and chemical environments, making it ideal for seawater applications. Its high strength and durability ensure long-lasting performance under stress and high temperatures. The alloy’s resistance to pitting, crevice corrosion, and stress corrosion cracking makes it highly reliable in harsh conditions. Monel 400 is also known for its excellent thermal conductivity and machinability, making it easy to fabricate. Its versatility extends across a variety of industries, including marine, chemical processing, and aerospace, ensuring it meets demanding requirements while offering superior performance.
Yes, we offer custom sizes for Monel 400 Circle to meet specific project needs. Our team at Diaz Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
| Outer Diameter (OD) (mm) | Thickness (mm) | Size (mm) | Approximate Weight (kg) |
|---|---|---|---|
| 100 | 5 | 100 x 5 | 3.92 |
| 150 | 10 | 150 x 10 | 17.66 |
| 200 | 15 | 200 x 15 | 39.26 |
| 250 | 20 | 250 x 20 | 68.83 |
| 300 | 25 | 300 x 25 | 107.36 |
| 350 | 30 | 350 x 30 | 154.87 |
| 400 | 35 | 400 x 35 | 211.35 |
| 450 | 40 | 450 x 40 | 276.80 |
| 500 | 50 | 500 x 50 | 392.70 |
| Property | Value |
|---|---|
| Density | 8.80 g/cm³ |
| Melting Point | 1,455°C (2,651°F) |
| Electrical Resistivity | 0.49 µΩ·cm |
| Thermal Conductivity | 35.4 W/m·K |
| Thermal Expansion (25-100°C) | 13.4 µm/m·K |
| Specific Heat (at 25°C) | 0.385 J/g·K |
| Young’s Modulus | 193 GPa (28 x 10⁶ psi) |
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | GOST |
|---|---|---|---|---|---|---|---|
| Monel 400 | N04400 | 2.4360 | NU-30M | NiCu30Fe | NW 4400 | NA 13 | МНЖМц 28-2,5-1,5 |
You’ll find Monel 400 circles hard at work in critical components where reliability is paramount. They are essential for manufacturing pump shafts, marine impellers, and valve trim, especially in seawater systems that demand superior corrosion resistance. The aerospace and chemical processing industries also rely on these durable circles for parts that must withstand harsh acids and alkalis. Essentially, wherever conditions are particularly punishing, Monel 400 provides the long-lasting, dependable performance that keeps essential operations running smoothly and safely.
