In the heart of Manila’s industrial landscape, Diaz Sheetsandplates stands as a trusted partner for demanding material needs. We specialize in providing high-quality Inconel 718 foils, meticulously sourced to meet the rigorous standards of various advanced industries. Our commitment is to deliver not just a product, but a reliable solution backed by deep expertise and a dedication to supporting the growth and innovation of local and international engineering projects with superior materials you can count on.

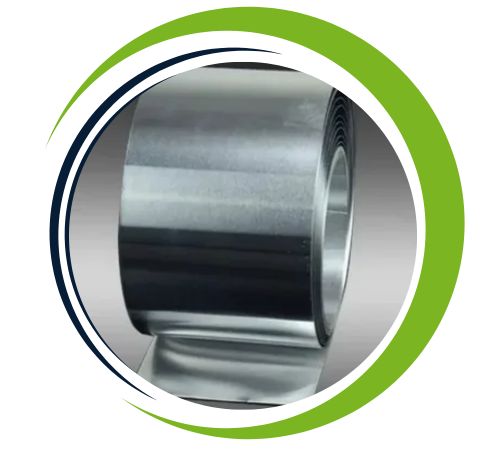

Crafted from a nickel-chromium alloy strengthened with niobium and molybdenum, Inconel 718 foil is renowned for its exceptional strength. It maintains this robustness in high-stress environments, even at temperatures up to 1300°F. A key advantage is its outstanding resistance to post-weld cracking, thanks to its aging treatment. This combination of high yield strength and impressive creep resistance makes it a go-to material for situations where both durability and temperature resistance are non-negotiable.
| Standards | ASTM B168 / ASME SB168 |
| Thickness | 0.3 – 10.0mm & AS PER CUSTOMER’S REQUIREMENT |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm & AS PER CUSTOMER’S REQUIREMENT. |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm & AS PER CUSTOMER’S REQUIREMENT. |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard AS PER CUSTOMER’S REQUIREMENT. |
| Test Certificate | Chemical test, Fitting test, Alloy test, Radiography test, Macro and micro-test, Hydrostatic test, Impact test. |
| Finish | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, chequered, embossed, hairline, sand blast, Brush, etching, Hot rolled (HR), Cold rolled (CR), SATIN (Met with Plastic Coated) etc. |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 718 | 0.08 max | 0.35 max | 0.35 max | 0.015max | 0.30 max | – | 50.00 – 55.00 | 17.00 – 21.00 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 718 | 8.2 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 482 | 45 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Inconel 718 | 2.4668 | N07718 | – | – | – | – | – |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Diaz Sheets and Plates based in Manila, Philippines, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Inconel 718 foils offer several advantages, including excellent resistance to high-temperature oxidation and corrosion, making them ideal for extreme environments. Their superior tensile strength and creep resistance at elevated temperatures ensure durability under stress, even in aerospace and gas turbine applications. The alloy’s ability to retain strength at cryogenic temperatures adds to its versatility. Inconel 718 foils also provide excellent weldability, reducing fabrication costs and complexities. Additionally, the material’s fatigue resistance and stability under thermal cycling make it a reliable choice for high-performance, long-lasting components in critical industries.
Yes, we offer custom sizes for Inconel 718 Foils to meet specific project needs. Our team at Diaz Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
| Thickness | Foil Weight per Unit Area | Density |
|---|---|---|
| 3/16 inches | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 inches | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
The versatility of Inconel 718 foil makes it indispensable across several critical fields. You’ll find it forming protective seals and thin-walled components in jet engines and gas turbines, where heat and pressure are extreme. It’s equally vital in the aerospace industry for spacecraft components and in oil and gas extraction for wellhead parts. Beyond that, its corrosion resistance is prized for chemical processing equipment and even in specialized medical instruments, proving its value anywhere exceptional performance under duress is required.
