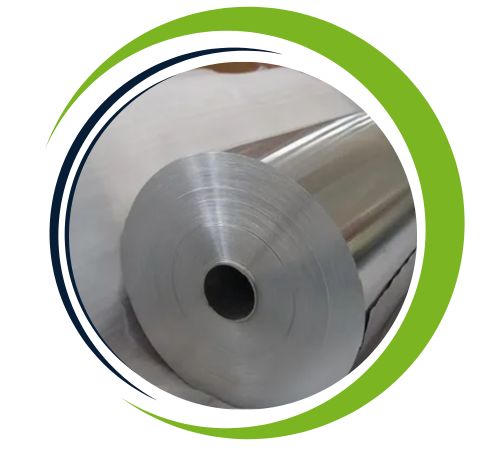

Situated in the heart of Manila, Philippines, Diaz Sheetsandplates has built a strong reputation as a trusted partner for high-performance materials. We take particular pride in supplying our clients with the exceptional Inconel 625 coil, a superalloy chosen by industries where failure is not an option. When you work with us, you’re not just getting a product; you’re gaining a reliable source for one of the most versatile and robust materials available in the market today.
The strength of Inconel 625 comes from its special recipe, primarily nickel and chromium, with significant additions of niobium and molybdenum. This gives the material incredible strength and toughness, especially in high-temperature environments where other metals might weaken. It maintains its structural integrity and resists deformation under stress, making it a go-to for challenging applications. This combination of raw power and resilience is what sets it apart.
Specifications : ASTM B443 / ASME SB443
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness : 0.3 mm to 120 mm
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.

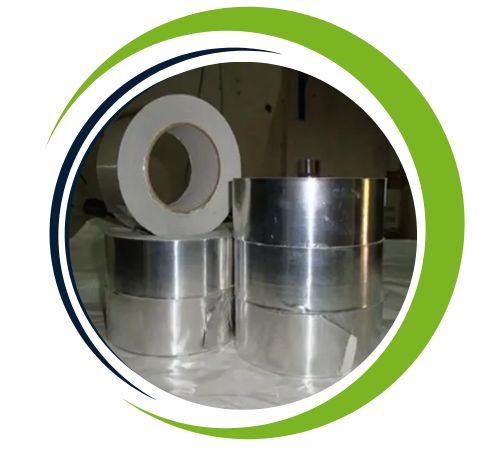

Finish : Hot rolled (HR), Cold rolled coils (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Form : Plain Coils, Shim Coils, Strip, Flats, Blank (Circle), Ring (Flange)
| Grade | C | Mn | Si | Cu | S | Cr | Fe | Ni | N |
| Inconel Alloy 625 | 0.10 max | 0.50 max | 0.50 max | – | 0.15 min | 20.0–23.0 | 5.0 max | 58.0 min | – |
| Density | Melting Point | Tensile Strength | Yield Strength 0.2% Proof | Elongation (% in 50mm) (thick.>0.76mm) |
| 8.4 g/cm3 | 1.350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 517 | 42.5 % |
| Grade | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Inconel 625 | 2.4856 | N06625 | NCF 625 | NA 21 | ХН75МБТЮ | NC22DNB4M | NiCr22Mo9Nb |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Inconel 625 Coil offers exceptional corrosion resistance, making it ideal for harsh environments, including chemical and marine industries. Its high strength and excellent fatigue resistance ensure reliability in demanding applications. The material’s outstanding thermal stability and resistance to oxidation and scaling at elevated temperatures make it suitable for high-temperature operations. Additionally, Inconel 625 exhibits excellent weldability and formability, allowing for versatile fabrication. Its resistance to pitting, crevice corrosion, and stress corrosion cracking enhances durability, making it a preferred choice for aerospace, power generation, and chemical processing industries.
Because of these remarkable properties, you’ll often find Inconel 625 coils at work in the most demanding sectors. They are essential in aerospace components, chemical processing equipment, and marine engineering, where resistance to corrosion is critical. It’s also the material of choice for pollution control scrubbers, and even in the exciting field of rocket engine components. Essentially, wherever extreme heat and corrosion are constant challenges, Inconel 625 provides a reliable, long-lasting solution.
