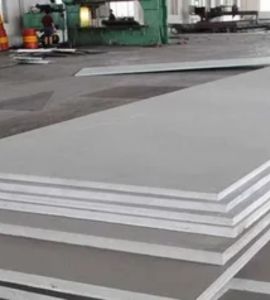

Nestled in the industrial heart of Manila, Diaz Sheetsandplates has built a trusted reputation as a premier source for high-performance metals. We specialize in providing top-tier Inconel 617 sheets and plates, catering to the demanding needs of various engineering sectors. Our commitment is to pair exceptional material quality with reliable service, ensuring our clients receive precisely what they need, when they need it, to build stronger and more resilient solutions.
The chemical makeup of Inconel 617 includes a robust blend of chromium, cobalt, and molybdenum, which grants it incredible strength even when things heat up. This material holds its own mechanically at temperatures soaring well above 1600°F. It won’t easily warp or weaken under intense stress, making it a reliable choice for situations where other metals would fail.
Standards : ASTM B168 / ASME SB168, SAE AMS 5888, SAE AMS 5889
Size : 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm
Form : Coils, Foils, Rolls, Plain Sheet, Strip, Flats, Blank (Circle), Ring (Flange) etc.
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Thickness : 0.1mm to 12 mm Thk
Length : 500mm to 12000mm
Width : 100mm to 3000mm
| Element | Yield Strength | Tensile Strength | Elongation % | Reduction of Area | Hardness, BHN | ||
| ksi | MPa | ksi | MPa | ||||
| Inconel 617 | 50.9 | 351 | 109.5 | 755 | 58 | – | 173 |
| Grade Inconel 617 | Ni | Cr | Fe | Mo | Co | Mn | Cu | Al | Ti | Si | C | S | P |
| MIN | 44.2 | 20.0 | – | 8.0 | 10.0 | – | – | 0.8 | – | – | – | – | – |
| MAX | 56.0 | 24.0 | 3.0 | 10.0 | 15.0 | 0.5 | 0.5 | 1.5 | 0.6 | 0.5 | 0.15 | 0.015 | 0.015 |
| STANDARD | UNS | WNR. |
| Alloy 617 | N06617 | 2.4663 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Diaz Sheets and Plates based in Manila, Philippines, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Inconel 617 Sheets and Plates offer numerous advantages, making them a preferred choice for high-performance applications. They exhibit excellent resistance to oxidation and carburization, even at temperatures exceeding 1000°C. Their superior mechanical strength and exceptional creep resistance ensure durability under extreme pressure and heat. The alloy’s corrosion resistance extends to acidic and high-moisture environments, enhancing its versatility. Additionally, its thermal stability and weldability make it easy to fabricate into complex structures. These properties make Inconel 617 ideal for aerospace, chemical processing, power generation, and gas turbine components.
Yes, we offer custom sizes for Inconel 617 Sheets and Plates to meet specific project needs. Our team at Diaz Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
| Dimension (mm) | KG P/M2 |
| 0.5 X 1000 X 2000 | 4.5 |
| 0.7 X 1219 X 3048 | 6.3 |
| 0.9 X 1219 X 3048 | 8.1 |
| 1.2 X 1219 X 3048 | 10.8 |
| 1.6 X 1200 X 3048 | 14.4 |
| 2.0 X 1219 X 3048 | 18.0 |
| 3 X 1200 X 3000 | 27.0 |
| 3.18 X VARIOUS ANN | 28.6 |
| Thickness | Plate Weight per Unit Area | Density |
| 3/16 inches | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 inches | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
Industries that operate under extreme heat, like power generation and aerospace, rely on Inconel 617 sheets for critical components. You’ll often find them in gas turbine parts and pressure vessels, where failure isn’t an option. Even demanding chemical processing environments use these sheets to handle tough jobs, ensuring long-lasting performance and reducing downtime.
