Aluminium Sheets and Plates

Nestled in the heart of Manila, Philippines, Diaz Sheetsandplates has built its reputation on being a trusted local source for high-grade aluminium. We understand that every project, whether an architectural marvel or a custom fabrication, demands materials of unwavering quality. That’s why we dedicate ourselves to providing a diverse range of aluminium sheets and plates, ensuring that businesses and creators have access to the durable and versatile materials they need to bring their visions to life, right here at home.

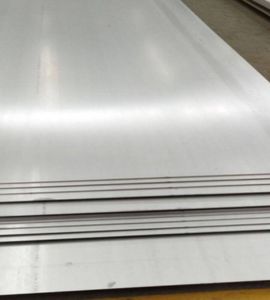

Aluminium Cold Rolled Plates

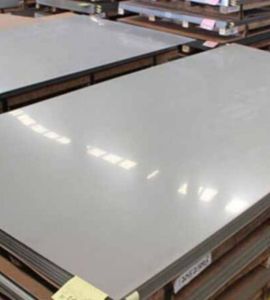

Aluminium Hot Rolled Plates

Aluminium Shim Sheets

Aluminium Sheets Dealer in Cebu City, Aluminium Hot Rolled (HR) Sheet & Plates Supplier in Cebu City, Aluminium Sheets in Puerto Princesa, Aluminium Plates Size Chart, Aluminium Sheet Price in Baguio, Aluminium Cold Rolled (CR) Sheet Supplier in Philippines, Aluminium Sheet Stockist in Davao City, Aluminium Sheets and Plates Exporter in Philippines, Aluminium Sheet Stockist in Manila, Aluminium Plates Supplier in Davao City

These materials are crafted from various aluminum alloys, primarily from the 1000, 3000, and 5000 series, which directly influence their strength, corrosion resistance, and weldability. In terms of mechanical performance, aluminium sheets and plates offer an excellent strength-to-weight ratio. They can be easily cut, drilled, and formed, while still providing reliable durability for a wide range of structural and non-structural applications, making them a practical and efficient choice for countless projects.

Aluminium Sheet and Plates Specification

Specifications	ASTM / ASME SB209
Size	1000 mm x 60610 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 60610 mm x 60610 mm, 60610 mm x 4000 mm
Finish	Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Thickness	0.1 to 12 mm Thk
Form	Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange)
Hardness	Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.

Aluminium Sheets Price in Baguio, Aluminium Hot Rolled Weight Chart, Aluminium Cold Rolled Supplier in Philippines, Stockist of Aluminium Cold Rolled Sheets in Davao City, Aluminium Perforated Sheet Supplier in Philippines, Aluminium Perforated Plates Price List in Manila, Aluminium Perforated Plates Supplier in Davao City, Aluminium Chequered Plates Exporter in Cebu City, Aluminium Polished Plates Exporter in Philippines, Aluminium Perforated Plates Exporter in Puerto Princesa, Aluminium Sheet and Plate in Baguio

Aluminium Sheet and Plates Chemical Composition

Alloy	% Si	% Cu	% Fe	% Mg	% Mn	% Cr	% Zn	% Ti	% Others	% Al
EN AW-1050 A	0.25 Maximum	0.05 Maximum	0.40 Maximum	0.05 Maximum	0.05 Maximum		0.07 Maximum	0.05 Maximum		99.5 Min
EN AW-1070 A	0.20 Maximum	0.03 Maximum	0.25 Maximum	0.03 Maximum	0.03 Maximum		0.07 Maximumimum	0.03 Maximum		99.7 Min
EN AW-1100	Si+Fe 0.95 Maximum	0.05 – 0.20			0.05 Maximum		0.10 Maximum	0.05 Maximum		99.0 Min
EN AW-2011	0.40 Max	5.00 – 6.00	0.70 Max				0.30 Max		Bi : 0.20 – 0.60 Pb : 0.20 – 0.60	Remainder
EN AW-2014	0.50 – 1.20	3.90 – 5.00	0.70 Max	0.20 – 0.80	0.40 – 1.20	0.10 Max	0.25 Max	0.15 Max		Remainder
EN AW-2024	0.50 Max	3.80 – 4.90	0.50 Max	1.20 -1.80	0.30 – 0.90	0.10 Max	0.25 Max	0.15 Max	0.15 Max	Remainder
EN AW-3003	0.60 Max	0.05 – 0.20	0.70 Max		1.00 – 1.50		0.10 Max		0.15 Max	Remainder
EN AW-3103	0.50 Maximum	0.10 Maximum	0.70 Maximum	0.30 Maximum	0.90 – 1.50	0.10 Maximum	0.20 Maximum	0.10 Maximum		Remainder
EN AW-6101A	0.30 – 0.7	0.05 Maximum	0.40 Maximum	0.40 – 0.90	0.03 Maximum				0.10 Maximum	Remainder
EN AW-6005	0.60 – 0.90	0.10 Max	0.35 Max	0.40 – 0.60	0.10 Max	0.10 Max	0.10 Max	0.10 Max		Remainder
EN AW-6351	0.70 – 1.30	0.10 Maximum	0.50 Maximum	0.40 – 0.80	0.40 – 0.80		0.20 Maximum	0.20 Maximum	0.15 Maximum	Remainder
EN AW-6060	0.30 – 0.60	0.10 Maximum	0.10 – 0.30	0.35 – 0.60	0.10 Maximum	0.05 Maximum	0.15 Maximum	0.10 Maximum		Remainder
EN AW-6061	0.40 – 0.80	0.15 – 0.40	0.70 Max	0.80 – 1.20	0.15 Max	0.04 – 0.35	0.25 Max	0.15 Max		Remainder
EN AW-6063	0.20 – 0.60	0.10 Max	0.35 Max	0.45 – 0.90	0.10 Max	0.10 Max	0.10 Max	0.10 Max		Remainder
EN AW-6082	0.70 – 1.30	0.10 Max	0.50 Max	0.60 -1.20	0.40 – 1.00	0.25 Max	0.20 Max	0.10 Max		Remainder

Aluminium Sheet and Plates Mechanical Properties

Alloy	Temper	Yield Strength (Mpa)		UTS (Mpa)		Elongation (%)
		Minimum	Maximum	Minimum	Maximum	A 50mm (Minimum)
EN AW-1050 A Sheet	F	20		60		23
EN AW-1050 A Sheet	O	20		60	95	23
EN AW-1070 A	F	20		60		23
EN AW-1100	O			75	110	25
EN AW-2011 Sheet	T4	125		275		12
EN AW-2011 Sheet	T6	230		310		6
EN AW-2014	O		135		250	10
	T4	230		370		11
	T6	370		415		5
EN AW-2024 Perforated Sheet	O		150		250	10
	T3,T3510,T3511	290		395		6
	T8,T8510,T8511	380		455		4
EN AW-3003 Mesh Sheet	F	35		95		20
EN AW-3003 Mesh Sheet	O	35		95	135	20
EN AW-3103 Sheets	F	35		95		20
EN AW-3103 Sheets	O	35		95	135	20
EN AW-6101A Shim Sheet	T6	170		200		8
EN AW-6005 Sheet	T4	90		180		13
EN AW-6005 Sheet	T6	225		270		6
EN AW-6351 Sheet	O		110		160	12
	T4	110		205		12
	T6	250		290		6
EN AW-6060	T4	60	14	120		12
	T5	120		160		6
	T6	150		190		6
	T64	120		180		10
	T66	160		215		6
EN AW-6061	O		110		150	14
	T4	110		180		13
	T6	240		260		6
EN AW-6063	O				130	16
	T4	65		130		12
	T5	130		175		6
	T6	170		215		6
	T66	200		245		6
EN AW-6082	O		110		160	12
	T4	110		205		12
	T5	230		270		6
	T6	250		290		6

If You Are Looking To Buy High Quality Piping Products ?

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Largest Aluminium Sheet and Plates Manufacturer and Exporter in Manila, Philippines

Diaz Sheets and Plates based in Manila, Philippines, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.

Aluminium Clad Sheets Distributor in Philippines, Aluminium Perforated Plates Supplier in Manila, Aluminium Perforated Sheet Weight Chart, Aluminium Plate Exporter in Davao City, Aluminium Polished Sheets Manufacturer in Cebu City, Aluminium Shim Sheet and Plate Price List in Philippines, Aluminium Chequered Plates Sizes in mm, Aluminium Hot Rolled Plate Distributor in Puerto Princesa, Aluminium Sheets and Plates Baguio

Aluminium Sheets and Plates offer numerous advantages, including excellent strength-to-weight ratio, making them ideal for lightweight yet durable applications. They are highly resistant to corrosion, especially in harsh environments, thanks to a natural oxide layer that protects the surface. Aluminium’s versatility allows for easy fabrication, welding, and machining, making it suitable for various industries like automotive, aerospace, and construction. Additionally, aluminium plates have excellent thermal and electrical conductivity, along with good formability, which enables their use in a wide range of applications, from structural components to heat exchangers.

Types of Aluminium Sheet and Plates

Aluminium Plates Manufacturer in Cebu City, Aluminium Plates & Sheets in Puerto Princesa, Aluminium Mirror Finish Plates Supplier in Manila, Aluminium Polished Plates Exporter in Davao City, Aluminium Chequered Plates Price List in Philippines, Aluminium Cold Rolled Plate Distributor in Puerto Princesa, Aluminium Clad Plates and Sheets Supplier in Cebu City, Aluminium Sheet and Plate Distributor in Philippines, Aluminium Perforated Plate Sizes in mm

Are Custom Sizes Available for Aluminium Sheet and Plates?

Yes, we offer custom sizes for Aluminium Sheet and Plates to meet specific project needs. Our team at Diaz Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.

Customer Support

Largest Inventory

On Time Delivery

Quality Assurance

Competitive Pricing

Aluminium Sheet and Plates Equivalent Grades

STANDARD	WERKSTOFF NR.	UNS
Aluminium	3.1254	A96082

Aluminium Sheet and Plates Sizes

AL Sheet Size (In Inches)		Roofing Sheet Size (In milimeter)
.125″	.875″	3.18	22.2
.134″	1″	3.40	25.4
.156″	1.125″	3.96	28.6
.187″	1.250″	4.75	31.8
.250″	1.500″	6.35	38.1
.312″	1.750″	7.92	44.5
.375″	2″	9.53	50.8
.500″	2.500″	12.7	63.5
.625″	3″	15.9	76.2
.750″		19.1

Application Industry of Aluminium Sheet and Plates

The applications for these sheets and plates are virtually limitless. In construction, they form sleek façades, durable roofing, and robust structural components. The transportation industry relies on them for lightweight truck bodies and marine trim. You’ll also find them in everyday items, from sturdy kitchen equipment and signage to intricate fabrication projects. Their adaptability makes them a favorite among builders, engineers, and designers who need a material that is not only strong and lightweight but also highly workable for both simple and complex creations.
