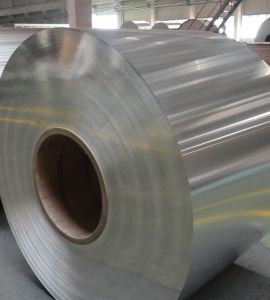

For businesses in Manila and beyond seeking exceptional high-temperature performance, Diaz Sheetsandplates stands as your trusted local partner. We take pride in manufacturing and supplying premium Alloy C263 Foil, a material engineered for the most demanding environments. Our commitment lies in delivering not just a product, but a reliable solution backed by deep expertise, ensuring you receive foil that meets the stringent quality and precision required for your critical applications right here from the Philippines.
This nickel-cobalt alloy is strengthened by gamma prime precipitation, giving it an outstanding balance of high tensile strength and excellent creep resistance at temperatures up to 800°C. It also offers good fatigue properties and is known for its fabricability in the annealed condition. This combination makes it a go-to material when you need something that can maintain its integrity and performance under intense heat and stress, simplifying the manufacturing process for complex components.
| Standard Specification : | AMS 5872 |
| Dimensions : | AMS |
| Sheets Thickness : | Range from .008″ to .0125″ |
| Plates Thickness : | Ranges from .0125″ to 5.00″ |
| Sheets/Plates Width : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Sheets/Plates Length : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Tempers : | Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard |
| Hardness : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Value Added Service : | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Grade | Ni | Co | Cr | Mo | Ti | Fe | Mn | Al | Si | Cu | C | B | S |
| Alloy C263 | 49 | 19-21 | 19-21 | 5.60-6.10 | 1.90-2.40 | 0.70 | 0.60 | 0.60 | 0.40 | 0.20 | 0.040 – 0.080 | 0.0050 | 0.0070 |
| Material | Temp °C | Yield Strength (Mpa) | Tensile Strength (Mpa) | Elongation % | Hardness HRC |
|---|---|---|---|---|---|
| Alloy C263 Solution Treated (AMS 5872 / BS HR206) | RT | – | – | – | 22.5 max |
| Alloy C263 Heat Treated (AMS 5872 / BS HR206 | RT | 580 (typical) | 973 (typical) | 39 – | |
| Alloy C263 Heat Treated (AMS 5872 / BS HR206 | 780 | 403 (min) | 541 (min) | 9 | – |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Properties | Metric | Imperial |
|---|---|---|
| Density | 8.359 g/cm3 | 0.302 lb/in3 |
| Melting point | 1300-1335°C | 2372-2471°F |
Alloy C263 foil provides excellent advantages for high temperature applications. It provides outstanding resistance to oxidation and creep, making it ideal for aerospace and industrial applications. The high weldability and formability of the alloy ensures easy fabrication in complex shapes. Its excellent thermal stability and resistance to cracking under thermal cycling enhances reliability in extreme conditions. Additionally, alloy C263 exhibits corrosion and oxidation resistance up to 980°C (1800°F), providing long durability. Its combination of strength, ductility and thermal performance makes it desirable in gas turbines and heat treatment equipment.
You’ll find this versatile foil hard at work in the aerospace industry, forming essential components like combustion cans and liners for jet engines where heat resistance is non-negotiable. Its reliability also extends to critical parts within gas turbines for power generation. Beyond these, it serves beautifully in various industrial applications, including heat treatment fixtures and chemical processing equipment, proving its worth wherever extreme temperatures and corrosive environments are part of the daily challenge.
